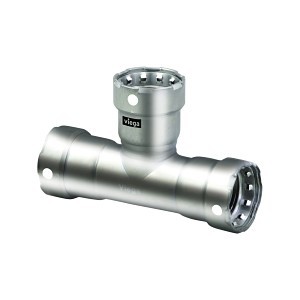

Tee, 1-1/4 x 1 in, Press, 304/304L Stainless Steel
PartMPS4T1141
MFG95865
Description
MegaPress® Reducing Tee, Series: 4118, Fitting/Connector Type: Tee, 1-1/4 x 1-1/4 x 1 in Nominal, Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, Import
Price/Availability Accessible On Login
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
- Model 4118
MegaPress® 304 FKM fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe to form a complete press system that is ideal for industrial applications. MegaPress® 304 FKM 1/2 in to 2 in fittings can be used with SCH 5 to 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to 40/STD stainless steel pipe. A MegaPress® 304 FKM system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® 304 FKM fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
| Fitting/Connector Type | Tee |
| Nominal Size | 1-1/4 x 1 in |
| End Style | Press |
| Material | 304/304L Stainless Steel |
| Domestic/Import | Import |
| Pressure Rating | 200 psi |
| Series | 4118 |
| Temperature Rating | 14 to 284 deg F |
| Brand | MegaPress® |
| Package Width | 3.83 in |
| Package Height | 2.21 in |
| UNSPSC | 40174607 |
| Alternate Part Number 1 | 403153 |
| Package Length | 6.54 in |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514958651 |
| Manufacturer Part Number | 95865 |
FKM Sealing Element
Limited
ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|FM Class 1920|IAPMO PS-117/UMC|ICC IMC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Acid Solution, Caustic Solution, Compressed Air, Industrial Gas, Low Pressure Steam, Lube Oil, Process Water (Non-Potable) and Vacuum Applications
