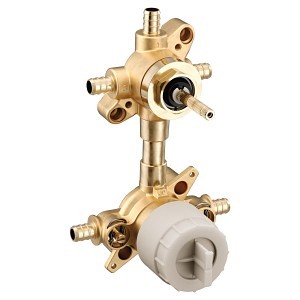

M-Pact™ M-Core™ 3-Port 3/6 Function Transfer Valve, 1/2 in, PEX Inlet x 1/2 in, PEX Outlet, 200 psi Air/300 psi Water Pressure, Brass Body
PartSTMU362XS
MFGU362XS
Description
Moen® M-Pact™ M-Core™ Transfer Valve, 3-Port 3/6 Function, 1/2 in PEX Inlet Connection, 1/2 in PEX Outlet, 200 psi Air/300 psi Water Pressure, Wall Mounting, Brass Body, Domestic
Price/Availability Accessible On Login
- IMPORTANT - When using 3 Showering Devices, transfer valve cartridge must be modified
- Simple Cartridge Modification changes the valves flow from two outlets to three outlets
- See Transfer Valve Instructions for additional information
- Caps are not included with the transfer valves
- M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
- Features volume control, allowing you to adjust the flow of water for greater functionality
- Improved style options, including the perfectly matched mixing and transfer trim, are available
- Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
- M-CORES adaptability allows the valves to be roughed in with the option of functionality and style changes that dont require removing or changing the valve(s)
M-CORE™ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options including perfectly matching mixing and transfer trim, and attention to detail that reflects a desire for a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.
| Nominal Size | 1/2 in |
| End Style | Crimp PEX |
| Body Material | Brass |
| Connection Size | 1/2 in |
| Connection Type | Crimp PEX |
| Domestic/Import | Domestic |
| Inlet Connection | 1/2 in PEX |
| Mounting Type | Wall |
| Outlet Connection | 1/2 in PEX |
| Pressure Rating | 200 psi Air/300 psi Water |
| Type | 3-Port 3/6 Function |
| Brand | Moen® |
| Package Width | 5.6 in |
| Package Height | 5.3 in |
| UNSPSC | 30181808 |
| Package Length | 8.6 in |
| Country of Origin | US |
| Manufacturer | Moen |
| UPC | 026508319680 |
| Manufacturer Part Number | U362XS |
Adjustable Temperature Limit Stop and Test Plug
Lifetime Limited Against Leaks, Drips and Finish Defects to the Original Homeowner/10 years Limited for Multifamily Installation/5 years Limited for Commercial Installation
ASME A112.18.1|CSA B125.1
