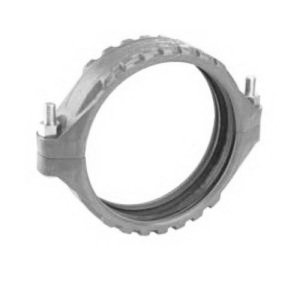

Coupling, 14 in, Groove, Ductile Iron, Galvanized
PartVFGFC14
MFGW140077GE1
Description
Victaulic® AGS™ Pipe Coupling, Flexible, Series: W77, Fitting/Connector Type: Coupling, 14 in Nominal, Grooved, 20.63 in Length, 350 psi, Ductile Iron, Hot Dipped Galvanized, 14 in OD x 4-1/2 in W
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
- Unique wedge-shaped key profile increases allowable pipe end separation, resulting in easier assembly
- Style W77 AGS coupling in 26 to 72 in/650 to 1800 mm sizes, features lifting lugs integrated into the housings to help ease handling during installation
- Provide limited linear and angular pipe movement at the pipe joint that can be used to compensate for thermal growth of piping systems, vibration attenuation, seismic, differential settlement and other applications requiring flexibility
- Flushseal grade E EPDM gasket
- Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown
Style W77 is the only flexible two-piece housing for 14 in/350mm to 60 in/1525mm piping systems. Style W77 provides limited linear angular movement to accommodate thermal pipe growth, vibration attenuation, seismic and other design considerations that require flexibility. Working pressures shown are based on standard wall carbon steel pipe roll or cut grooved in accordance with Victaulic specifications.
| Fitting/Connector Type | Coupling |
| Nominal Size | 14 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Galvanized |
| Dimensions | 14 in OD x 4-1/2 in W |
| Length | 20.63 in |
| Pressure Rating | 350 psi |
| Series | W77 |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 688304880032 |
| Manufacturer Part Number | W140077GE1 |
Ductile Iron Conforming to ASTM A536|Grade 65-45-12|FM Approved|NSF Approved|UL Listed
