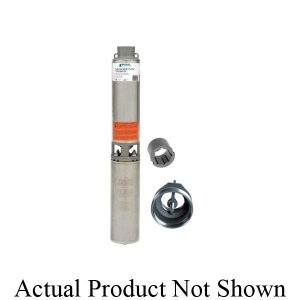

Groundwater Submersible Pump End, 34-Stage, 7.5 hp, 25 gpm
PartGLD25GS75CBM
MFG25GS75CBM
Description
Goulds e-GS Xtreme™ Submersible Well Pump, Series: 25GS, 25 gpm, 34 Stage, 7-1/2 hp, 60 Hz, 3450 rpm Motor, Noryl® Floating Impeller, 304 Stainless Steel, 40-1/2 in L
Price/Availability Accessible On Login
- The e-GS Xtreme™ features super strong construction due to the welded casing joints at both ends
- The proprietary engineered polymer bearings have been field proven with great success in some of the toughest submersible pump applications on the planet coal bed methane extraction
- All ratings are within the working limits of the motor as recommended by the motor manufacturer
- Pump can be operated continuously without damage to the motor
- Our face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design
- AISI types 302, 303 and 304 are corrosion resistant, non-toxic and non-leaching stainless steel metal parts
- Impellers, diffusers and bearing spiders are constructed of glass filled engineered composites
- Non-metallic parts are corrosion resistant and non-toxic
- Cast stainless steel discharge head features built-in safety loops and an up thrust limiting stud which is factory set to prevent the rotating assembly from up thrusting
- These pumps require a separate field installed external check valve to prevent backflow
- Stainless steel for strength and abrasive resistance bowl
- Check valve not supplied, order separately, pumps have 2 in NPT discharge threads
- Polished stainless steel casing is strong, attractive and corrosion resistant
- Six sided hex shaft design for positive impeller drive
- Shaft coupling exposed for ease of field alignment to motor shaft and to check pump rotation
- Proprietary engineered polymer bearing material is a super strong, abrasion and heat resistant design
| Type | Pump End |
| Flow Rate | 25 gpm |
| Power Rating | 7.5 hp |
| Number of Stages | 34 |
| Dimensions | 40-1/2 in L |
| Frequency Rating | 60 Hz |
| Impeller Type | Noryl® Floating |
| Material | 304 Stainless Steel |
| Motor Speed | 3450 rpm |
| Series | 25GS |
| Brand | Goulds |
| UNSPSC | 40151513 |
| Country of Origin | US |
| Manufacturer | Xylem |
| UPC | 697666353030 |
| Manufacturer Part Number | 25GS75CBM |
3-3/4 in Motor
42/66 Months
CSA/cUS Certified
Extreme Sand Handling and Coal Bed Methane Extraction
Price/Availability Accessible On Login
GouldsGroundwater Submersible Pump End, 34-Stage, 7.5 hp, 25 gpm
