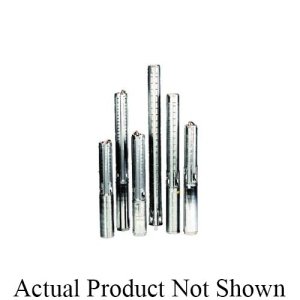

Groundwater Submersible Pump End, 15-Stage, 60 hp, 317 gpm
PartGRU300S60015PEO
MFG14BG0015
Description
Grundfos, 14BG0015, Submersible Pump, Series: SP Series, 317 gpm Flow Rate, 15 Stage, 60 hp Power, 460 V AC, 60 Hz Frequency, 3 ph, 3460 rpm Motor, (15) 304 Stainless Steel Impeller, 68 deg F, Thrust Bearing, Stainless Steel, 5.79 in Dia x 77.8 in H Dimensions
Price/Availability Accessible On Login
- State-of-the-art hydraulics provide high efficiency and low operating costs
- 100% stainless steel components inside and outside for long service life
- 3 ph motor with sand shield, liquid lubricated bearings and pressure equalizing diaphragm
- Resistant to aggressive water
- Dry running protection
- Monitoring, protection and communication via protection unit MP 204/Grundfos GO
- The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibers
- 6 in Dia motor
- 4 in NPT pump outlet
- AISI 304 stainless steel parts
Grundfos range of submersible pumps (SP) is recognized worldwide for its reliable performance, high energy efficiency and long product life. Invented in 1967, the SP pump was the first ever stainless steel submersible pump and to this day it remains the benchmark in the market. SP pumps cover a wide range of applications where efficient water pumping is required, including water supply, irrigation, mining, fountains, reverse osmosis, dewatering, ground water lowering and many more. The new upgraded and extended range of high capacity 4 in submersible pumps which have improved octagonal discharge, cable guard attachment, wear resistance and optimized hydraulics offer increased performance and efficiency.
| Type | Pump End |
| Flow Rate | 317 gpm |
| Power Rating | 60 hp |
| Number of Stages | 15 |
| Bearing Type | Thrust |
| Dimensions | 5.79 in Dia x 77.8 in H |
| Frequency Rating | 60 Hz |
| Impeller Type | (15) 304 Stainless Steel |
| Material | Stainless Steel |
| Motor Speed | 3460 rpm |
| Phase | 3 ph |
| Series | SP |
| Temperature Rating | 68 deg F |
| Voltage Rating | 460 V AC |
| Brand | Grundfos |
| UNSPSC | 40151513 |
| Alternate Part Number 1 | 300S600-15 |
| Manufacturer | Grundfos |
| Manufacturer Part Number | 14BG0015 |
84Z04063 Motor
Limited
AISI 304
Groundwater Supply to Waterworks, Irrigation in Horticulture and Agriculture, Groundwater Lowering (Dewatering), Pressure Boosting, Industrial Applications and Domestic Water Supply
