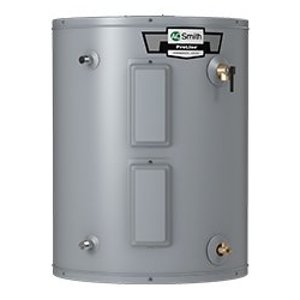

ProMax® Low Boy Side Connect Electric Water Heater, 38 gal, 3.4 kW, 120 VAC
PartAOS40E120
MFG100296195
Description
AO Smith® ProMax® Electric Water Heater, Lowboy Top Connect, Series: ENJ-40W, 38 gal Tank, 120 V AC, 5000 W Power, 1 ph, 3/4 in MNPT Water Connection, (2) Incoloy® Heating Element, 0.91, 18 gph at 90 deg F Rise Recovery Rate, 150 psi Pressure, ASME: No, 26 in Dia x 33-1/2 in H Dimensions
Notice
Price/Availability Accessible On Login- Only the following branch locations are authorized to sell AO Smith: Redding, Chico, Susanville & Medford. Please email our Water Heater Division with any questions.
- Features a convenient flat porcelain surface at 36 in height, providing extra "counter space" wherever installed
- All plumbing and electrical connections are made through the back of the water heater
- This heater is equipped with a PEX cross-linked polymer dip tube
- Designed for low-demand, such as office lavatories or buildings with remote restrooms
- Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
- Designed for installation under a counter, in a crawl space or in other tight spaces
- Provides superior corrosion resistance compared to industry standard glass lining
- Our standard residential water heaters have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- 60 Hz
| Tank Capacity Range | 36 to 40 gal |
| Power Rating | 3.4 kW |
| Voltage Rating | 120 VAC |
| Warranty Years | 6 |
| Type | Low Boy Side Connect |
| Blanket (Yes/No) | No |
| Series | ProMax® |
| Tank Capacity | 38 gal |
| ASME Yes/No | No |
| Dimensions | 26 in Dia x 33-1/2 in H |
| Energy Factor | 0.91 |
| Heating Element | (2) Incoloy® |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 18 gph at 90 deg F Rise |
| Water Connection | 3/4 in MNPT |
| Brand | AO Smith® |
| Package Width | 27.13 in |
| Package Height | 37 in |
| UNSPSC | 40101825 |
| Package Length | 30.25 in |
| Manufacturer | A. O. Smith |
| UPC | 671657067328 |
| Manufacturer Part Number | 100296195 |
Temperature and Pressure Relief Valve
6 Years Limited Tank and Parts
ASHRAE/IESNA 90.1|CSA Certified|CSA Certified and ASME Specified T&P Relief Valve|UL Listed|Federal Energy Conservation Standards with Energy Policy and Conservation Act (EPCA)|Meets UBC/CEC and HUD National Codes
Residential
