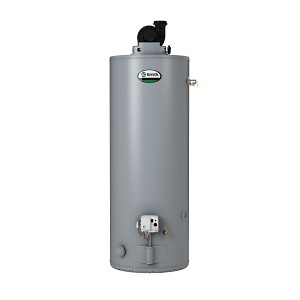

ProMax® Power Direct Tall Residential Water Heater, 50 gal, Natural Gas, 62 Kbtu/hr, 0.70 Energy Factor
PartAOS50NPVHR
MFG100113770
Description
AO Smith® ProLine® XE Gas Water Heater, Series: GPVX-50L, 62000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 50 gal Tank, Electronic Ignition, Power Vent, 69 gph at 90 deg F Recovery, Energy Factor: 0.7, 3/4 in Water Connection, 150 psi, Tall or Short: Short, Ultra Low Nox: No, 22 in Dia x 65 in H
Notice
Price/Availability Accessible On Login- Only the following branch locations are authorized to sell AO Smith: Redding, Chico, Susanville & Medford. Please email our Water Heater Division with any questions.
- Versatile power vent design - All models feature an exclusive 3-position rotatable blower outlet which adds flexibility
- Combined horizontal and vertical vent runs up to 180 equivalent ft with 4 in Dia venting (ABS, PVC, CPVC and polypropylene)
- All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition
- Air intake snorkel elevates the inlet location of combustion air to prevent flammable vapors from entering the sealed combustion chamber
- Reduced NOx emissions comply with air quality management district regulations
- ENERGY STAR® qualified - Meet the ENERGY STAR® EF requirement and may also qualify for local utility and rebate programs
- Built-in heat traps on the water inlet and outlet reduce the amount of heat lost through piping
- 2 in Thk, environmentally-friendly foam insulation reduces the amount of heat loss and contributes to overall energy efficiency
- Dynaclean™ diffuser dip tube - Reduces lime and sediment build up and maximizes hot water output, made from long-lasting PEX cross-linked polymer
- Hot-surface ignitor more robust and reliable than standing pilot and reduces energy consumption
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
- User-friendly - State-of-the-art electronic gas control provides more precise temperature control
- LED control light displays operation status and diagnostics information
- Enhanced-flow brass drain valve - Our residential water heaters have a solid brass, tamper resistant, enhanced-flow, ball type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off
- Models rated for installation at altitudes up to 10,100 ft
The ProLine® XE Power Vent gas water heater is engineered to maximize efficiency while offering greater flexibility in installation options.
| Fuel Type | Natural Gas |
| Tank Capacity Range | 48 to 55 gal |
| Ultra Low NOx | No |
| Heating Capacity | 62 Kbtu/hr |
| Warranty Years | 6 |
| Type | Tall |
| Vent Type | Power Direct |
| Blanket (Yes/No) | No |
| Series | ProMax® |
| Energy Factor | 0.70 |
| Tank Capacity | 50 gal |
| Dimensions | 22 in Dia x 65 in H |
| Gas Connection | 1/2 in |
| Ignition Type | Electronic |
| Pressure Rating | 150 psi |
| Recovery Rate | 69 gph at 90 deg F |
| Tall or Short | Short |
| Water Connection | 3/4 in |
| Brand | AO Smith® |
| Package Width | 25.63 in |
| Package Height | 63.31 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | GPVX50L00L010000 |
| Package Length | 33.25 in |
| Country of Origin | US |
| Manufacturer | A. O. Smith |
| UPC | 671657146030 |
| Manufacturer Part Number | 100113770 |
6 Years Limited Tank and Component Parts
AHRI Certified|CSA Design Certified|Certified to ANSI Z21.10.1-CSA 4.1 or ANSI Z21.10.3-CSA 4.3 Standards Governing Storage Tank-Type Water Heaters|Star Design Certified
Residential Applications
Notice
Price/Availability Accessible On Login- Only the following branch locations are authorized to sell AO Smith: Redding, Chico, Susanville & Medford. Please email our Water Heater Division with any questions.
AO Smith®ProMax® Power Direct Tall Residential Water Heater, 50 gal, Natural Gas, 62 Kbtu/hr, 0.70 Energy Factor
