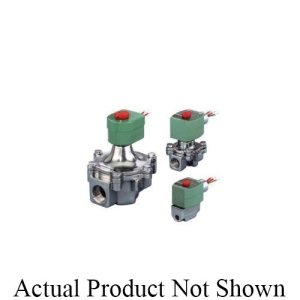

Solenoid Valve & Coil, 1-1/4 in, FNPT, Aluminum Body, Normally Closed, 120 VAC
PartASC8215B06012060
MFG8215B060
Description
Asco Redhat® Solenoid Valve, 2-Way 2-Position NC, Series: 8215, 1-1/4 in Nominal, FNPT, Media: Air/Vacuum, 1-5/8 in Orifice, Direct Acting/Pilot Operated Actuator, 5 in Inlet to Outlet Length, 5.59 in Top to Inlet Center, Aluminum Body, NBR/PTFE, 5.38 in W x 6.84 in H
Notice
Price/Availability Accessible On Login- Lightweight, low-cost valves for air service
- Ideal for low pressure applications
| Type | Valve & Coil |
| Switch Type | Normally Closed |
| Coil Voltage | 120 VAC |
| Nominal Size | 1-1/4 in |
| End Style | FNPT |
| Body Material | Aluminum |
| Actuator Type | Direct Acting/Pilot Operated |
| Dimensions | 6.84 in H x 5.38 in W |
| Inlet to Outlet Length | 5 in |
| Media | Air/Vacuum |
| Orifice Size | 1-5/8 in |
| Series | 8215 |
| Softgoods Material | NBR Seal, Disc, Diaphragm/PTFE Rider Ring |
| Top to Inlet Center | 5.59 in |
| Brand | Asco |
| UNSPSC | 40141605 |
| Manufacturer | Asco Valves & Instruments |
| Manufacturer Part Number | 8215B060 |
CE/CSA/CSAus C22.2 No. 139 File 10381|Z21.21 (6.5) C/I File 112872|FM Approved||UL Listed
Notice
Price/Availability Accessible On Login
AscoSolenoid Valve & Coil, 1-1/4 in, FNPT, Aluminum Body, Normally Closed, 120 VAC
