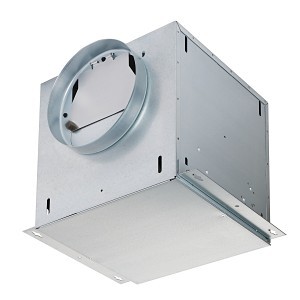

Bathroom Fan, 250 cfm, 120 VAC, 1 ph
PartBRNL250EL
MFGL250EL
Description
Broan®, L250EL, Inline Ventilation Fan, High Capacity, 120 V, 0.6 A, 3.9 W Power, 233 cfm Flow Rate, 8 in Duct, 12.25 in Length, 60 Hz Frequency, Plug-In Motor, 1158 rpm Motor, Galvanized Steel Housing Material, White, 11.75 in H x 12.25 in W Dimensions
Price/Availability Accessible On Login
- Ventilator shall have galvanized steel housing insulated with at least 1/2 in of acoustic insulation
- Housing to have adjustable mounting brackets and removable panel to allow motor access without disturbing ductwork
- Automatic backdraft damper to be located within duct connector
- Blower unit shall be removable from housing and shall have a dynamically balanced centrifugal-type blower wheel
- Motor to be permanently lubricated and mounted with resilient antivibration mounts
| Type | Fan |
| Air Flow Rate | 250 cfm |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Amperage Rating | 0.6 A |
| Color | White |
| Dimensions | 11.75 in H x 12.25 in W |
| Domestic/Import | Domestic |
| Duct Size | 8 in |
| Flow Rate | 233 cfm |
| Frequency Rating | 60 Hz |
| Housing Material | Galvanized Steel |
| Length | 12.25 in |
| Motor Speed | 1158 rpm |
| Motor Type | Plug-In |
| Power Rating | 3.9 W |
| Brand | Broan® |
| Package Width | 15.99 in |
| Package Height | 15 in |
| Package Length | 15.99 in |
| Country of Origin | US |
| Manufacturer | Broan-NuTone |
| UPC | 026715269778 |
| Manufacturer Part Number | L250EL |
8 Way Adjustable Mounting Brackets, Backdraft Damper
1 Year
ENERGY STAR Certified|AMCA Certified|HVI Certified|cULus Listed|ASHRAE 90.1 (2019) Compliant|IECC-C (2021) Compliant|IMC (2021) Compliant|UL Listed|RoHS Compliant|Title 24 Compliant
For Conference Rooms, Public Restrooms, Kitchen and Other Areas in Commercial Buildings that Require Ongoing Ventilation
