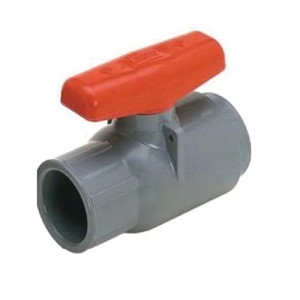

1-Piece Ball Valve, 3/4 in, FNPT, Standard Port, CPVC Ball, CPVC
PartCBVT34
MFG6621-007C
Description
Spears® Ball Valve, Lead Free, Series: Compact 2000, 3/4 in Nominal, FNPT, 235 psi, CPVC Ball, 3-9/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, CPVC Body, EPDM/FKM Softgoods, Gray, Domestic
Price/Availability Accessible On Login
Documentation
- Industrial grade, maintenance-free sealed unit
- New actuator-ready body accepts Spears® improved mini-mount actuator mounting kits
- New double O-Ring stem seal
- Spears® Safe-T-Shear® stem
- PTFE self adjusting floating seats
- Suitable for vacuum service
- Produced in ASTM IPS sizes 1/2 in - 2 in with socket or threaded end connectors
- 235 psi at 73 deg F
- EPDM O-ring and EPDM/FKM O-ring seal
Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications. PVC and CPVC valves are available in IPS sizes 1/2 in through 2 in with socket and regular thread.
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Port Type | Standard |
| Construction | 1-Piece |
| Material | CPVC |
| Ball Material | CPVC |
| Body Material | CPVC |
| Color | Gray |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3-9/16 in |
| Pressure Rating | 235 psi |
| Series | Compact 2000 |
| Softgoods Material | EPDM/FKM |
| Top to Inlet Center | 2 in |
| Brand | Spears® |
| UNSPSC | 40141607 |
| Country of Origin | US |
| Manufacturer | Spears Manufacturing |
| UPC | 054211370230 |
| Manufacturer Part Number | 6621-007C |
Limited Lifetime
ASTM D1784/F1970|NSF Certified
For Potable Water
