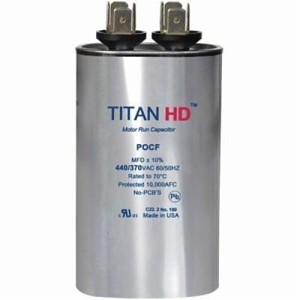

Titan HD™ Single Heavy Duty Motor Run Capacitor, 10 uF, 440 VAC, 50/60 Hz, Oval, Aluminum Case
PartDIVPOCF10A
MFGPOCF10A
Description
Packard Titan HD™ Motor Run Capacitor, Single Heavy Duty, 10 uF, 440 V AC, 50/60 Hz, Oval, 1/4 in Male Quick-Connect Terminal, -40 to 70 deg C, Aluminum Case, Steel Cover, 2-3/16 in Case Height, 2-11/16 in H x 2 in W x 1-1/4 in D, Domestic
Price/Availability Accessible On Login
- Self clearing metalized polypropylene film technology for self-restoration in the event of a breakdown
- Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
- Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer, patented non-PCB epoxidized Soybean-oil®
- Meets the rigorous EIA-456-A industry standard for performance and quality
- Designed for continuous heavy duty applications
- 60000 hours operation life, capacitance stability +/-3% throughout life
- Protected 10000 AFC
- RoHS compliant which guarantees a safe use of lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE)
Titan HD™ capacitors are built to the toughest international standards and meet all industry regulatory approvals.
| Type | Single Oval |
| Capacitance | 10 uF |
| Voltage Rating | 440 VAC |
| Case Height | 2-3/16 in |
| Case Material | Aluminum |
| Cover Material | Steel |
| Dimensions | 2-11/16 in H x 2 in W x 1-1/4 in D |
| Domestic/Import | Domestic |
| Frequency Rating | 50/60 Hz |
| Shape | Oval |
| Temperature Rating | -40 to 70 deg C |
| Terminal Type | 1/4 in Male Quick-Connect |
| Brand | Packard |
| Package Width | 2.2 in |
| Package Height | 4 in |
| UNSPSC | 32121500 |
| Package Length | 1.5 in |
| Country of Origin | US |
| Manufacturer | Packard |
| UPC | 840899105277 |
| Manufacturer Part Number | POCF10A |
cUL Listed|cRUus Certified|C22.2 NO 190|EIA-456-A|E136401|IEC 60252|RoHS Compliant|UL Listed
For Air Conditioning, Business Machines, Fans and Refrigeration
