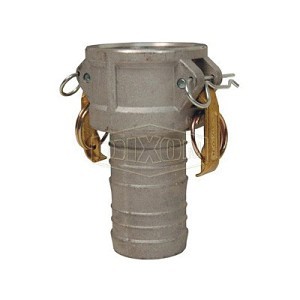

Type C Cam and Groove Coupler, 3 in, Female Coupler x Hose Shank, Aluminum
PartDIXG300CAL
MFGG300-C-AL
Description
Dixon® Cam and Groove Coupler, Type-C, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x Hose Shank End Style, 5-5/32 in Length, 125 psi Pressure, Aluminum, 6-5/32 in H Dimensions, Import
Price/Availability Accessible On Login
Documentation
- Interchange with all products produced to A-A-59326D
- Made to Dixon specifications and branded Dixon
- Buna seals are standard
- Pressure rating for adapters is based on the seal of the mating part
- Brass handle
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Fitting/Connector Type | Coupling |
| Nominal Size | 3 in |
| Dimensions | 6-5/32 in H |
| Domestic/Import | Import |
| End Style | Female Coupler x Hose Shank |
| Length | 5-5/32 in |
| Material | Aluminum |
| Pressure Rating | 125 psi |
| Type | Type C |
| Brand | Dixon® |
| UNSPSC | 40141734 |
| Country of Origin | CN |
| Manufacturer | Dixon Valve & Coupling |
| Manufacturer Part Number | G300-C-AL |
Limited
Designed for use with liquids
