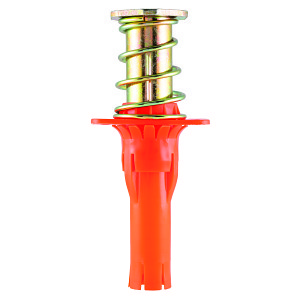

Bang-It® Cast-In-Place Anchor, 3/8, 1/2 or 5/8 in, Electrogalvanized
PartDWTBI381258
MFGPFM353381258
Description
DeWALT® Bang-It® Concrete Insert, Cast-In-Place, 3/8 in, 1/2 in, 5/8 in Diameter, 5/8 in, 11/16 in, 15/16 in Thread Length, Carbon Steel/Engineered Plastic, UNC Thread, 3/8-16, 1/2-13, 5/8-11 Thread, 5-7/16 in Overall Length, Zinc Plated
Price/Availability Accessible On Login
Documentation
- Fast and simple to install, low installed cost
- Color coded by size for simple identification
- Bang-It® can be installed in upper and lower steel deck profiles with limited concrete topping thickness (see installation details)
- Hex head does not rotate when set
- Insert design allows for full thread engagement
- Suitable for seismic and wind loading
Bang-It® concrete inserts are designed for installation in and through composite steel deck (that is "pan-deck") used to support newly poured concrete floors or roof slabs. Bang-It® concrete inserts are specifically designed to provide hangar attachments for mechanical, electrical, plumbing (MEP) and fire protection. After installation, the protective sleeve of the insert protrudes below the surface of the deck. The sleeves are color coded by size and allow overhead attachment of steel threaded rod in sizes ranging from 1/4 to 3/4 in Dia, including 1/4 in, 3/8 in and 3/8 in, 1/2 in multi version. The sleeve prevents sprayed fireproofing material and acoustical dampening products from clogging the internal threads of the insert. It also prevents burying, masking or losing the insert location. A hex impact plate offers resistance to rotation within the concrete as a steel threaded rod is being installed.
| Type | Cast-In-Place |
| Size | 3/8, 1/2 or 5/8 in |
| Finish | Electrogalvanized |
| Series | Bang-It® |
| Diameter | 3/8 in, 1/2 in, 5/8 in |
| Material | Carbon Steel/Engineered Plastic |
| Overall Length | 5-7/16 in |
| Thread Length | 5/8 in, 11/16 in, 15/16 in |
| Thread Size | 3/8-16, 1/2-13, 5/8-11 |
| Thread Type | UNC |
| Brand | DeWALT® |
| Package Width | 2.75 in |
| Package Height | 1.5 in |
| UNSPSC | 31162400 |
| Package Length | 5.5 in |
| Country of Origin | CN |
| Manufacturer | Stanley Black & Decker |
| UPC | 075352320878 |
| Manufacturer Part Number | PFM353381258 |
ACI 318|ASTM E488|ASTM B633 (Fe/Zn5)|ESR-3657|FM Approved|IBC/IRC 2018/2015/2012/2009|UL Listed
Hanging Pipe and Sprinkler Systems, HVAC Ductwork and Strut Channels, Suspending Trapeze and Cable Trays, Mechanical Unit Overhead Utilities, Conduit and Lighting System, Seismic Loading and Cracked Concrete
