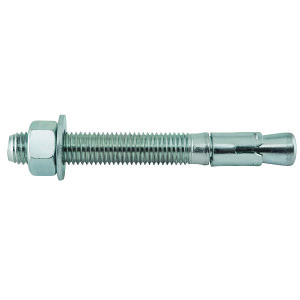

Power-Stud®+ SD1 Wedge Anchor, 3/4 in, 6/1/4 in L, Electrogalvanized
PartDWTS34614
MFG7444SD1-PWR
Description
DeWALT®, 7444SD1-PWR, Wedge Anchor, Expansion, Series: SD1, 3/4 in Diameter, 6-1/4 in Overall Length, 3-3/4 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 3/4 in Drill, 3/4-10 Thread, Threaded Stud Head, UNC Thread, 2-1/8 in Maximum Work Thickness, 12580 lb Shear Strength, 9075 lb Tensile Strength
Price/Availability Accessible On Login
- Consistent performance in high and low strength concrete
- Ultimate load capacity - 8850 lb shear strength when embedded in 1500 psi, 9375 lb shear strength when embedded in 2000 psi at 12 in minimum edge/end distance and 10200 lb shear strength when embedded in 1500 psi, 10800 lb shear strength when embedded in 2000 psi at 20 in minimum edge/end distance grout-filled concrete masonry wall faces
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- Ultimate load capacity: 7180 lb tensile strength when embedded in 2500 psi, 7860 lb tensile strength when embedded in 3000 psi and 9075 lb tensile strength when embedded in 4000 psi compressive strength concrete
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
| Type | Wedge |
| Size | 3/4 in |
| Length | 6/1/4 in |
| Finish | Electrogalvanized |
| Series | Power-Stud®+ SD1 |
| Diameter | 3/4 in |
| Drill Size | 3/4 in |
| Head Type | Threaded Stud |
| Material | Carbon Steel |
| Maximum Work Thickness | 2-1/8 in |
| Minimum Embedment Depth | 3-3/8 in |
| Overall Length | 6-1/4 in |
| Shear Strength | 12580 lb |
| Tensile Strength | 9075 lb |
| Thread Length | 3-3/4 in |
| Thread Size | 3/4-10 |
| Thread Type | UNC |
| Brand | DeWALT® |
| Package Width | 8.74 in |
| Package Height | 3.94 in |
| UNSPSC | 31162102 |
| Alternate Part Number 1 | 15600976|7444SD1 |
| Package Length | 5.83 in |
| Country of Origin | CN |
| Manufacturer | Stanley Black & Decker |
| UPC | 075352781198 |
| Manufacturer Part Number | 7444SD1-PWR |
Carbon Steel Expansion Clip, Nut and Washer
2015 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|UL EX1289|ICC-ES AC01, ESR-2818/2966|UL Listed
Structural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications
