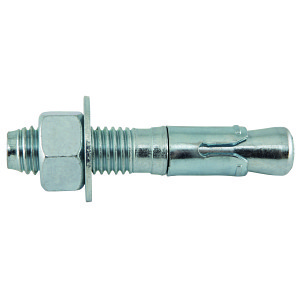

Power-Stud®+ SD1 Wedge Anchor, 5/8 in, 3-1/2 in L, Electrogalvanized
PartDWTW58312
MFG7430SD1-PWR
Description
DeWALT®, 7430SD1-PWR, Expansion Wedge Anchor, Series: SD1, 5/8 in Diameter, 3-1/2 in Overall Length, 1-1/2 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11 Thread, Threaded Stud Head, UNC Thread, 1/8 in Maximum Work Thickness, 6815 lb Shear Strength, 6285 lb Tensile Strength
Price/Availability Accessible On Login
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Allowable load capacity - 1240 lb tensile strength when embedded in 2500 psi, 1360 lb tensile strength when embedded in 3000 psi, 1570 lb tensile strength when embedded in 4000 psi normal-weight concrete
- 35/64 in nut height
- 15/16 in wrench
- 80 ft-lbf installation torque
- 11/16 in fixture clearance hole
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
| Type | Wedge |
| Size | 5/8 in |
| Length | 3-1/2 in |
| Finish | Electrogalvanized |
| Series | Power-Stud®+ SD1 |
| Diameter | 5/8 in |
| Drill Size | 5/8 in |
| Head Type | Threaded Stud |
| Material | Carbon Steel |
| Maximum Work Thickness | 1/8 in |
| Minimum Embedment Depth | 2-3/4 in |
| Overall Length | 3-1/2 in |
| Shear Strength | 6815 lb |
| Tensile Strength | 6285 lb |
| Thread Length | 1-1/2 in |
| Thread Size | 5/8-11 |
| Thread Type | UNC |
| Brand | DeWALT® |
| Package Width | 10.8 in |
| Package Height | 3.5 in |
| UNSPSC | 31162102 |
| Alternate Part Number 1 | 15600966 |
| Package Length | 4.2 in |
| Country of Origin | CN |
| Manufacturer | Stanley Black & Decker |
| UPC | 075352776170 |
| Manufacturer Part Number | 7430SD1-PWR |
Carbon Steel Expansion Clip, Nut and Washer
2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
Structural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications
