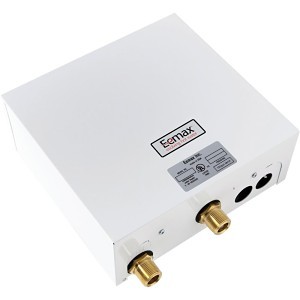

Two™ Thermostatic Electric Tankless Water Heater, 240 VAC, 19 KW, 1 ph, 80 A, Commercial/Residential
PartEEMEX190TC
MFGEX190TC
Description
Eemax™ Electric Tankless Water Heater, Thermostatic, Series: Two™, 240 VAC, 80 A, 19000 W Power, 1 ph ph, 3 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, 0.99, (2) 8 AWG Wire, Wall Mounting, 1.5 gpm at 87 deg F Rise Recovery Rate, 25 to 150 psi, 140 deg F, ASME: No, White, 10.68 in W x 4.32 in D x 10.12 in H, Commercial/Residential/Dual: Commercial/Residential, Domestic
Price/Availability Accessible On Login
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - No storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
- Easy Installation - Simple NPT fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- Powder coated cover
- Bottom plumbing configuration
- 0.7 gpm turn-on
- Replaceable cartridge bare wire element
Thermostatic electric tankless water heater ideal for residential and commercial applications up to 4 gpm.
| Power Rating | 19 kW |
| Voltage Rating | 240 VAC |
| Amperage Rating | 80 A |
| ASME Yes/No | No |
| Color | White |
| Commercial/Residential/Dual | Commercial/Residential |
| Dimensions | 10.68 in W x 4.32 in D x 10.12 in H |
| Domestic/Import | Domestic |
| Energy Factor | 0.99 |
| Flow Rate | 3 gpm |
| Heating Element | Nickel Chrome |
| Mounting Type | Wall |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 1.5 gpm at 87 deg F Rise |
| Series | Two |
| Temperature Rating | 140 deg F |
| Type | Thermostatic |
| Water Connection | 3/4 in FNPT |
| Wire Size | 8 AWG |
| Brand | Eemax™ |
| UNSPSC | 40101826 |
| Alternate Part Number 1 | 019401 |
| Country of Origin | US |
| Manufacturer | Eemax |
| UPC | 091654019401 |
| Manufacturer Part Number | EX190TC |
1 Year Limited
AHRI Certified|ANSI/NSF 372 by WQA|Patent #4762980/4960976|UL 499
Shopping Mall And Retail Outlets, Schools and all other Public Buildings, Tenant Spaces, Commercial Builds, Restaurants and Service Stations, Modular Buildings, Office and Trailers, Concession Stands and Food Service Locations and any Remote Sink that does not have Hot Water
