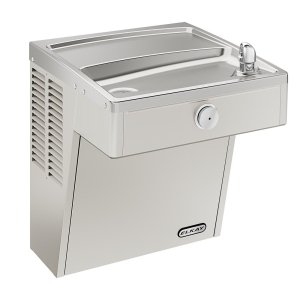

Wall Mount Vandal Resistant ADA Cooler Non-Filtered Refrigerated Stainless
PartELKVRC8S
MFGVRC8S
Description
Elkay® Cooler, Non-Filtered Barrier Free, Operation: Push Button, Chilling Option: Refrigerated, 3/8 in OD Tubing, 1-1/4 in Drain, Wall Mount, 115 V AC 60 Hz, R-134A Refrigerant, Galvanized Steel, Stainless Steel, 18-5/8 in D, Domestic
Price/Availability Accessible On Login
- Classic design stainless steel cooler provides an attractive and durable product
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted
- Stainless steel construction withstands abusive environments and resists stains
- Tamper-resistant fasteners help protect against vandalism
- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
- Rated for indoor or outdoor use
VRC8S shall deliver 8 gph of 50 deg F drinking water at 90 deg F ambient and 80deg F inlet water. VRCDS is non-refrigerated and shall deliver non-chilled drinking water. Unit shall be stainless steel construction and include vandal-resistant pushbutton activation. Cooler shall include vandal-resistant bubbler. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets federal and state low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2# 120.
| Type | Fountain |
| Mounting Type | Wall |
| Chilling Option | Refrigerated |
| ADA Compliance (Yes/No) | Yes |
| Connection Type | 3/8 in OD Copper Tube |
| Dimensions | 18-5/8 in D |
| Domestic/Import | Domestic |
| Drain Connection | 1-1/4 in |
| Electrical Ratings | 115 V AC 60 Hz |
| Finish | Stainless Steel |
| Material | Galvanized Steel |
| Operation | Pushbutton |
| Refrigerant Type | HFC-134A |
| Brand | Elkay® |
| Package Width | 19.6875 in |
| Package Height | 26.1875 in |
| UNSPSC | 48101710 |
| Package Length | 20.5 in |
| Item Width | 18.5 in |
| Item Length | 18 in |
| Country of Origin | US |
| Item Height | 20.625 in |
| Manufacturer | Elkay Manufacturing |
| UPC | 094902400457 |
| Manufacturer Part Number | VRC8S |
Water Cooler
1 Year Limited
ADA Compliant|ICC A117.1|ASME A112.19.3/CSA B45.4|CAN/CSA C22.2# 120|NSF/ANSI 61/372 (Lead Free)|UL 399 Listed
For Indoor and Outdoor Use
Videos
Video Link Video
Price/Availability Accessible On Login
Elkay®Wall Mount Vandal Resistant ADA Cooler Non-Filtered Refrigerated Stainless
