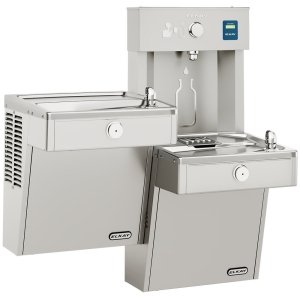

ezH2O Vandal-Resistant Bottle Filling Station and Bi-Level Cooler Non-Filtered Non-Refrigerated Stainless
PartELKVRCTLDDWSK
MFGVRCTLDDWSK
Description
Elkay® Bottle Filling Station and Cooler, Lead Free Non-Filtered Barrier Free Bi-Level, 1.5 gpm, Operation: Push Button, Chilling Option: Non-Refrigerated, 1-1/2 in Drain, Wall Mount, 115 V AC 60 Hz 15 W, Stainless Steel, Stainless Steel, 18-11/16 in D, Domestic
Price/Availability Accessible On Login
- Ideal for heavy-use installations such as educational and indoor recreational facilities
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler
- Fill rate is 1.5 GPM
- Green Tickerâ„¢ informs user of number of 20 oz. plastic water bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
- Rated for indoor/outdoor use
Unit shall include bi-level electric water cooler with bottle filling station. VRCTL8WS shall deliver 8 gph of 50 deg F drinking water at 90 deg F ambient and 80 deg F inlet water. VRCTLDDWS shall deliver non-chilled drinking water. Units shall be stainless steel construction and include vandal-resistant bubbler. Bottle filling unit shall include an automatic 20 sec shut-off timer. Shall include Green Tickerâ„¢ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1 to 1.5 gpm flow rate with laminar flow to minimize splashing. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets federal and state low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.
| Type | Refill Station & Drinking Fountain Combo |
| Mounting Type | Wall |
| Chilling Option | Non-Refrigerated |
| ADA Compliance (Yes/No) | Yes |
| Dimensions | 18-11/16 in D |
| Domestic/Import | Domestic |
| Drain Connection | 1-1/2 in |
| Electrical Ratings | 115 V AC 60 Hz 15 W |
| Finish | Stainless Steel |
| Flow Rate | 1.5 gpm |
| Material | Stainless Steel |
| Operation | Pushbutton |
| Brand | Elkay® |
| Package Width | 31.6875 in |
| Package Height | 25.8125 in |
| UNSPSC | 48101700 |
| Package Length | 22.75 in |
| Item Width | 18.625 in |
| Item Length | 36.125 in |
| Country of Origin | US |
| Item Height | 38.8125 in |
| Manufacturer | Elkay Manufacturing |
| UPC | 094902771885 |
| Manufacturer Part Number | VRCTLDDWSK |
Water Cooler (VRCTLDDWSC), Bottle Filler (VRCWS)
1 Year Limited
ADA Compliant and ICC A117.1|ASME A112.19.3/CSA B45.4|CAN/CSA C22.2# 120|NSF/ANSI 61|372 (Lead Free)|UL 399 Listed
For Indoor and Outdoor Use
