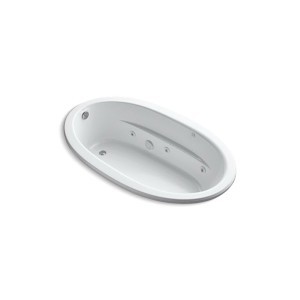

Sunward® Drop-In/Undermount Bath Tub, 72 x 42 x 21 in, End Drain, White
PartKOHK1164S1WHT
MFG1164-S1-0
Description
Kohler® Bathtub, Sunward®, Whirlpool Bath Therapy, Oval Shape, 72 in Length, 42 in Width, 20 in Height, 75 gal Water, End Drain Location, 1-1/2 in Drain, 50 x 24 in Bottom Basin/65 x 27 in Top Basin Bathing Well, 15 in Overflow Height, 6 Jets, Drop-In/Under Mounting, ExoCrylic™, White
Price/Availability Accessible On Login
- Single-speed whirlpool offers performance and value, with 8 fully adjustable jets
- Hydromassage flow and direction can be controlled at each jet
- Generous 6-ft oval shape provides an incredibly spacious bathing area
- Molded lumbar support and armrests offer extra comfort while bathing
- Textured bottom surface
- KOHLER ExoCrylic™ material offers 30% lighter product weight for easier installation
- 90% fewer VOCs* (volatile organic compounds) produced during manufacturing
- Compared to KOHLER® Brand Acrylic FRP
- Smooth backside for easy handling and mounting of drain and overflow
- Whirlpool hydrotherapy
- Recommended Accessories: K-11677 Bath Drain, K-1491 Bath/Whirlpool Pillow, K-1601 Bath/Whirlpool Footstop, K-577 Undermount Install Kit, K-24916 Wireless Music Kit
- Additional Hydrotherapy Options: Soaking Bath - 1165-S1, Soaking Bath + Bask heated surface - 1165-S1W, BubbleMassage air bath - 1164-S1G, BubbleMassage air bath + Bask heated surface - 1164-S1GW, Whirlpool - 1164-S1, Whirlpool + heater - 1164-S1H, Whirlpool + Bask heated surface - 1164-S1W lb
- One dedicated circuit required, protected with class A ground-fault circuit-interrupter (GFCI) or residual current device (RCD)
- Electrical component rating120 V, 7.5 A, 60 Hz pump
- Minimum floor load 36 lbs/sq-ft (175.8 kg/sq-m)
- The hot water supply should be 70% of the capacity of the bath or greater
- Provide one grounded electrical outlet within 24 in (610 mm) of each component
- The suction line extends 4-5/8 in (117 mm) beyond the edge of the rim
Surround yourself with the comfortable contours and hydromassage features of the Sunward oval bath. This two-person bath's built-in back support and armrests encourage you to fully sink in, while adjustable whirlpool jets relax away the day's tension. KOHLER ExoCrylic™ is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing.
| Type | Drop-In/Undermount |
| Color Family | White |
| Overall Length Range | 72 to 72-1/2 in |
| Overall Width Range | 42 to 42-1/2 in |
| Height | 21 in |
| Drain Location | End |
| Collection | Sunward® |
| ADA Compliance (Yes/No) | No |
| Finish/Color | White |
| Length | 72 in |
| Width | 42 in |
| Bath Therapy Type | Whirlpool |
| Bathing Well Size | 50 x 24 in Bottom Basin/65 x 27 in Top Basin |
| Drain Size | 1-1/2 in |
| Material | ExoCrylic™ |
| Mounting Type | Drop-in/Undermount |
| Number of Jets | 6 |
| Overflow Height | 15 in |
| Shape | Oval |
| Water Capacity | 75 gal |
| Brand | Kohler® |
| UNSPSC | 30181517 |
| Alternate Part Number 1 | K-1164-S1-0 |
| Manufacturer | Kohler |
| UPC | 885612143105 |
| Manufacturer Part Number | 1164-S1-0 |
1 Year Limited
ASME A112.19.7/CSA B45.10|CSA B45.5/IAPMO Z124|Greenguard UL 2818 Gold|CARB P2|UL 1795
