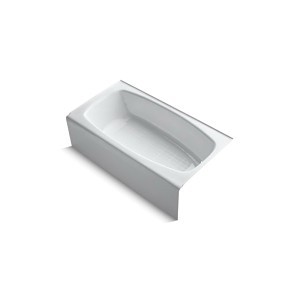

Dynametric® Alcove Bath Tub, ADA, 60 x 32 x 16-1/4 in, Right Hand Drain, White
PartKOHK520WHT
MFG520-0
Description
Kohler® Bathtub, Dynametric® Collection, Soaking Hydrotherapy Bath Therapy, Rectangle Shape, 60 in Length, 32 in Width, 16-1/4 in Height, 35 gal Water, Right Drain Location, 1-1/2 in Drain, 41 x 22 in Bottom Basin/54 x 25 in Top Basin Bathing Well, 8-5/8 in Soaking Depth, 8-5/8 in Overflow Height, 3-Wall Alcove Mounting, Cast Iron, White
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
- Bath with raised bottom allows use of horizontal drain from outlet to wall
- Integral apron for quick installation
- Designed for one-person bathing
Combining Kohler® styling and functionality, the Dynametric 5 ft bath includes an integral apron for easy installation. Also with a raised bottom that allows use of a horizontal drain from the outlet to the wall. This model is available in a palette of Kohler® colors to complement any decor.
| Type | Alcove |
| Color Family | White |
| Overall Length Range | 60 to 61 in |
| Overall Width Range | 32 to 32-1/2 in |
| Height | 16-1/4 in |
| Drain Location | Right Hand |
| Collection | Dynametric® |
| ADA Compliance (Yes/No) | Yes |
| Finish/Color | White |
| Length | 60 in |
| Width | 32 in |
| Bath Therapy Type | Soaking Hydrotherapy |
| Bathing Well Size | 41 x 22 in Bottom Basin/54 x 25 in Top Basin |
| Domestic/Import | Domestic |
| Drain Size | 1-1/2 in |
| Material | Cast Iron |
| Mounting Type | Alcove |
| Overflow Height | 8-5/8 in |
| Shape | Rectangular |
| Soaking Depth | 8-5/8 in |
| Water Capacity | 35 gal |
| Brand | Kohler® |
| UNSPSC | 30181501 |
| Alternate Part Number 1 | K-520-0 |
| Country of Origin | US |
| Manufacturer | Kohler |
| UPC | 040688092881 |
| Manufacturer Part Number | 520-0 |
Lifetime Limited
ADA Compliant|ASME A112.19.1/CSA B45.2|ASTM F462|CSA B651|ICC/ANSI A117.1|OBC
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
Kohler®Dynametric® Alcove Bath Tub, ADA, 60 x 32 x 16-1/4 in, Right Hand Drain, White
