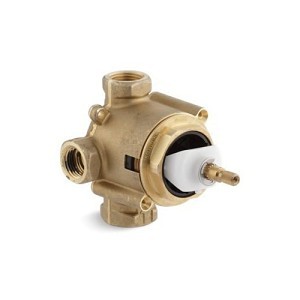

MasterShower® Transfer Valve, 3/4 in FNPT Inlet x 1/2 in FNPT Outlet, 2/3 Ways, Brass Body
PartKOHK728KNA
MFG728-K-NA
Description
Kohler® Transfer Valve Trim, Series: MasterShower®, 3/4 in FNPT Inlet Connection, 1/2 in FNPT Outlet, 2 or 3 Ways, 45 psi, 18 gpm 1 Outlet/20.8 gpm 2 Outlet, Brass Body, 3-15/16 in L x 3-3/8 in W x 3-5/8 in H
Notice
Price/Availability Accessible On Login- FOR SALE ONLY IN HAWAII
- Transfers water flow to up to three separate components/outlets
- Components/outlets can be operated individually or in any combination of two components at the same time
- Supplied as a 3-way transfer valve (360 deg handle rotation) but can be configured onsite for 2-way operation (120 deg handle rotation)
- Single handle operation
- Using 1 outlet - 18 gpm flow rate at 45 psi - using 2 outlets - 20.8 gpm at 45 psi
- (1) 3/4 in FNPT inlet connection
- (3) 1/2 in FNPT outlet connections
- Requires additional valves to control On/Off operation and temperature (sold separately)
- Requires transfer/diverter valve trim (sold separately)
- Forged de-zincification resistant brass body provides long term reliability and resistance to aggressive water conditions
The MasterShower® transfer valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components to six different outputs and can also easily be configured as a two-way transfer valve.
| Nominal Size | 3/4 in |
| End Style | FNPT |
| ADA Compliance (Yes/No) | No |
| Body Material | Brass |
| Connection Size | 3/4 in |
| Connection Type | FNPT |
| Dimensions | 3-15/16 in L x 3-3/8 in W x 3-5/8 in H |
| Flow Rate | 18 gpm 1 Outlet/20.8 gpm 2 Outlet |
| Inlet Connection | 3/4 in FNPT |
| Number of Ways | 2/3 |
| Outlet Connection | 1/2 in FNPT |
| Pressure Rating | 45 psi |
| Series | MasterShower® |
| Type | Rough Valve |
| Brand | Kohler® |
| UNSPSC | 30181810 |
| Alternate Part Number 1 | K-728-K-NA |
| Country of Origin | US |
| Manufacturer | Kohler |
| UPC | 650531952448 |
| Manufacturer Part Number | 728-K-NA |
Limited Lifetime
ASME A112.18.1/CSA B125.1
