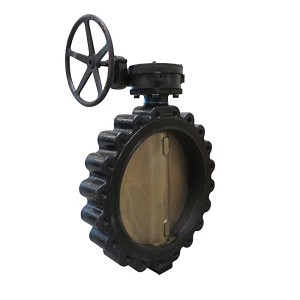

Lug Style Butterfly Valve, Gear Operator, 18 in, Flange, 150 psi, Ductile Iron
PartMILML333E18
MFGML333E A18
Description
Milwaukee Valve Ultra Pure™ Butterfly Valve, Lug Style, Series: ML Series, 18 in Nominal, Gear Actuator, 18-1/2 in Top to Inlet Center, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Alloy Steel (Stem Pin) Stem & Pin Material, EPDM, 33.26 in H, Domestic
Price/Availability Accessible On Login
Documentation
- Low lead valve for potable water
- 150 psig non-shock
- Uni-directional dead end service to 150 psig max
- Bubble tight shut-off
- Milwaukee M series butterfly valve 2 to 12 in is approved by U.S coast guard for use in category A service as described in title 46 code of federal regulations 56.20-15
- Heavy duty Design
- Phenolic cartridge design
- Low torque liner
- Low torque polymer bearing standard
- Field repairable
- Extended neck body
- Low profile disc
- Blow-out proof disc
- Note - the wetted surface of this product (in any material combination) contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Lead free refers to the wetted surface of the pipe, fittings and fixtures in potable water systems that have a weighted average lead content =0.25%, source: california Health and safety code (116875)
- EPDM liner/stem seal
| Type | Lug Style |
| Actuator Type | Gear Operator |
| Nominal Size | 18 in |
| End Style | Flange |
| Pressure Rating | 150 psi |
| Material | Ductile Iron |
| Body Material | Ductile Iron |
| Dimensions | 33.26 in H |
| Disc Material | Aluminum Bronze |
| Domestic/Import | Domestic |
| Series | ML |
| Softgoods Material | EPDM |
| Stem & Pin Material | 416 Stainless Steel (Stem)/Alloy Steel (Stem Pin) |
| Top to Inlet Center | 18-1/2 in |
| Trim Material | 416 Stainless Steel Stem |
| Brand | Milwaukee Valve |
| UNSPSC | 40141619 |
| Country of Origin | US |
| Manufacturer | Milwaukee Valve |
| UPC | 697988341654 |
| Manufacturer Part Number | ML333E A18 |
ANSI 4140/AISI 6150 Stem Pin|ASTM A536 Body|ASTM B148 Disc|API-609|MSS SP-67 Type 1|ABS Type Approved Cat A CFR-46|WQA Tested and Certified Against NSF/ANSI 372 for "Lead-Free" Compliance|PROP65: Cancer and Reproductive Harm California Transparency in Supply Chains Act of 2010
