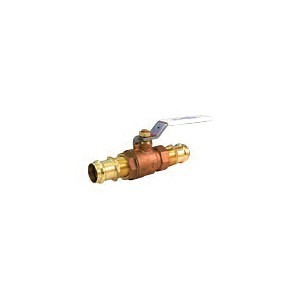

2-Piece Ball Valve, 3/4 in, Press, Full Port, Plated Brass Ball, Bronze
PartMILUPBA400P2A34
MFGUPBA-100P2B 34
Description
Milwaukee Valve Ultrapress™ Ultra Pure™ Ball Valve, Lead Free 2-Piece, Series: UPBA100 P2, 3/4 in Nominal, Press, 200 psi WOG, 250 deg F, Full Port, 0.76 in Orifice, Chrome Plated Brass Ball, 6.22 in Inlet to Outlet Length, 2.32 in Top to Inlet Center, Cast Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE/PTFE Softgoods, Domestic
Price/Availability Accessible On Login
- Blow-out proof stem design
- Hard chrome plated brass ball
- Zinc plated steel Handle
- 25% glass filled RPTFE thrust washer
- 15% glass filled RPTFE seat
- Revision: B
- RPTFE seal/thrust washer and PTFE packing
| Nominal Size | 3/4 in |
| End Style | Press |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Plated Brass |
| Body Material | Cast Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 6.22 in |
| Orifice Size | 0.76 in |
| Pressure Rating | 200 psi |
| Series | UPBA100 P2 |
| Softgoods Material | RPTFE/PTFE |
| Temperature Rating | 250 deg F |
| Top to Inlet Center | 2.32 in |
| Trim Material | Brass Stem and RPTFE Seat |
| Brand | Milwaukee Valve |
| UNSPSC | 40141607 |
| Country of Origin | US |
| Manufacturer | Milwaukee Valve |
| UPC | 697988693647 |
| Manufacturer Part Number | UPBA-100P2B 34 |
ASTM B584 C89833 Body|ASTM B283 C27450 Ball|B21 C46400|H02 Stem|MSS SP 110|NSF/ANSI 372|PROP65: Cancer and Reproductive Harm. California Transparency in Supply Chains Act of 2010.
For Potable Water
