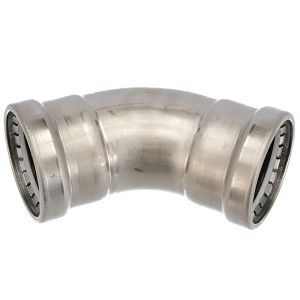

45 deg Elbow, 2-1/2 in, Press, 304/304L Stainless Steel
PartMPS44212
MFG95530
Description
MegaPress® Elbow, Series: 4126XL, Fitting/Connector Type: 45 deg Elbow, 2-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, Import
Price/Availability Accessible On Login
Documentation
- Engineered with a 420 stainless steel grip ring plus a PBT separator ring for sizes 2-1/2 in to 4 in fittings
- Wide range of fitting configurations
- Eliminates threading and welding
- No fire watches, hot work permits or messy cutting oils
- Makes secure press connections from 1/2 in to 4 in seconds
- Compatible with existing press tools
- Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
- Smart Connect® technology
MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe to form a complete press system that is ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
| Fitting/Connector Type | 45 deg Elbow |
| Nominal Size | 2-1/2 in |
| End Style | Press |
| Material | 304/304L Stainless Steel |
| Domestic/Import | Import |
| Pressure Rating | 200 psi |
| Series | 4126XL |
| Temperature Rating | 14 to 284 deg F |
| Brand | MegaPress® |
| Package Width | 5.74 in |
| Package Height | 3.54 in |
| UNSPSC | 40172807 |
| Alternate Part Number 1 | 408103 |
| Package Length | 7.88 in |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514955308 |
| Manufacturer Part Number | 95530 |
FKM Sealing Element
Limited
ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|IAPMO PS-117/UMC|ICC IMC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved
Acid Solution, Caustic Solution, Compressed Air, Industrial Gas, Low Pressure Steam, Lube Oil, Process Water (Non-Potable) and Vacuum Applications
