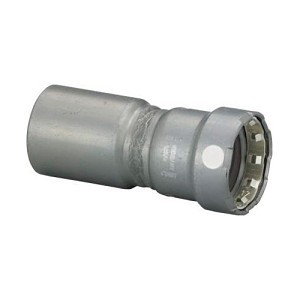

Carbon Steel Bushing, 1-1/4 x 1 in, Fitting x Press
PartMPWB1141
MFG84180
Description
MegaPress®, 84180, Reducer, Series: Model 5915.1, Fitting/Connector: Coupling, 1-1/4 x 1 in Nominal, FTG x Press End Style, 200 psi Pressure, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 3.98 in L Dimensions, Import
Price/Availability Accessible On Login
- Approved for more applications than any other carbon steel pipe press fitting system
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
MegaPress® FKM is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air, and fire sprinkler applications. MegaPress FKM fittings in sizes from 1/2 to 4 in are offered in configurations including: elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, unions, caps, and flanges.
| Fitting/Connector Type | Bushing |
| Nominal Size | 1-1/4 x 1 in |
| End Style | Fitting x Press |
| Pressure Class | Standard |
| Domestic/Import | Import |
| Dimensions | 3.98 in L |
| Finish | Nickel Plated/Zinc Plated |
| Material | Carbon Steel |
| Pressure Rating | 200 psi |
| Series | Model 5915.1 |
| Temperature Rating | 14 to 284 deg F |
| Brand | MegaPress® |
| UNSPSC | 40183100 |
| Country of Origin | DE |
| Manufacturer | Viega |
| UPC | 691514841809 |
| Manufacturer Part Number | 84180 |
FKM Sealing Element
Limited
ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|FM Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA|UL/ANSI 213|ULC/ANSI ORD-C213|UL Listed
For use with ASTM SCH 5 to SCH 40 carbon steel pipe and fire protection applications
Price/Availability Accessible On Login
MegaPress®Carbon Steel Bushing, 1-1/4 x 1 in, Fitting x Press
