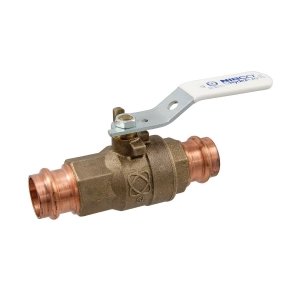

2-Piece Ball Valve, 2 in, Press, Full Port, Bronze Ball, Bronze
PartNIBPC58580LF2
MFGNF840XD
Description
NIBCO® Press System® Ball Valve, 2-Piece, Series: PC-585-80-LF, 2 in Nominal, Press x Female Press, 250 psi, 250 deg F, Full Port, Media: Water, 2 in Orifice, Standard Lever Actuator, Silicon Bronze Ball, 8.4 in Inlet to Outlet Length, 3.56 in Top to Inlet Center, Silicon Bronze Body, Silicon Bronze Trim, EPDM/PTFE, Domestic
Price/Availability Accessible On Login
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Copper-to-copper connections
- Blow-Out proof stem
- Reinforced PTFE seat rings
- Press leak-detection feature
- Dezincification resistant
- Multiple handle options, including NIB-Seal
- Maximum service temperature 250 deg F
The NIBCO® Press System® ball valve body is manufactured from lead free HydraPure™ Performance Bronze™ alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique N witness mark is clearly visible. The lead free HydraPure™ Performance Bronze™ ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® Press System® valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
Nominal Size | 2 in |
End Style | Press |
Port Type | Full |
Construction | 2-Piece |
Material | Bronze |
Ball Material | Bronze |
Actuator Type | Standard Lever |
Body Material | Cast Copper Silicon Bronze |
Domestic/Import | Domestic |
Inlet to Outlet Length | 8.4 in |
Media | Water |
Orifice Size | 2 in |
Pressure Rating | 250 psi |
Series | PC-585-80-LF |
Softgoods Material | EPDM/PTFE |
Temperature Rating | 250 deg F |
Top to Inlet Center | 3.56 in |
Trim Material | Silicon Bronze Stem |
Brand | NIBCO® |
Package Width | 8.125 in |
Package Height | 4.75 in |
UNSPSC | 40141607 |
Package Length | 12.687 in |
Country of Origin | US |
Manufacturer | NIBCO Inc. |
UPC | 039923349705 |
Manufacturer Part Number | NF840XD |
5 Years Limited
ASTM B584 Alloy C87600 Body|ASTM A276 S31600/ASTM A351 CF8 Ball|ASTM B371 Alloy C69300 Stem|ASTM B584 Alloy C87600|cUPC Listed|IAPMO/ANSI Z1157 (IGC-157)|Low Lead Compliant NSF/ANSI 372|MSS SP-145|NSF/ANSI-61-8|Commercial Hot 180 deg F|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For use in systems that deliver water for human consumption
