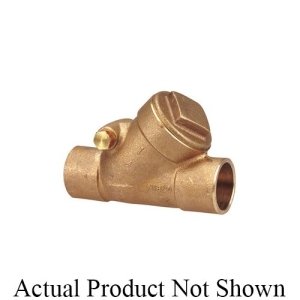

Swing Check Valve, 1/2 in, C, Bronze
PartNIBS433Y12
MFGNJ7K006
Description
NIBCO® Swing Check Valve, Y-Pattern, Series: S-433-Y, 1/2 in Nominal, Solder, 300 psi, 150 lb, Low Lead Compliance: No, 1.69 in Top to Inlet Center, Bronze Body, PTFE, Domestic
Notice
Price/Availability Accessible On Login- 150 psi/10.3 bar saturated steam to 366 deg F/185 deg C
- 300 psi/20.7 bar non-shock cold working pressure
- Renewable PTFE disc
- Regrindable seat
- Class 150 solder end connections
The NIBCO® bronze large diameter horizontal swing check valve with renewable seat and disc. It features a bolted bonnet for accessibility to repair or replace parts. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve is recommended for commercial and industrial steam, water, oil and gas service. The NIBCO® bronze check valve features solder end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5-year 125% limited warranty.
| Nominal Size | 1/2 in |
| End Style | C |
| Material | Bronze |
| Domestic/Import | Import |
| Body Material | Bronze |
| Low Lead Compliance | No |
| Pressure Class | 150 lb |
| Pressure Rating | 300 psi |
| Series | S-433-Y |
| Softgoods Material | PTFE Seat, Disc |
| Top to Inlet Center | 1.69 in |
| Trim Material | Bronze |
| Type | Y-Pattern |
| Brand | NIBCO® |
| Package Width | 4.375 in |
| Package Height | 3.125 in |
| UNSPSC | 40141634 |
| Package Length | 13.312 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923636225 |
| Manufacturer Part Number | NJ7K006 |
5 years Limited
MSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
