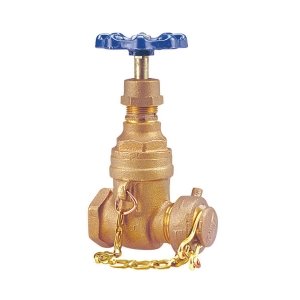

113HC Non-Rising Stem Gate Valve, 3/4 in, FNPT x Hose Cap, Bronze
PartNIBT113HC34
MFGNL0F808
Description
NIBCO® Gate Valve, Series: T-113-HC, 3/4 in Nominal, NPT x ANFH, 200 psi, 125 lb, Handwheel Actuator, 5.06 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, Aramid Fiber, Domestic
Notice
Price/Availability Accessible On Login- 125 psi/8.6 bar saturated steam to 353 deg F/178 deg C
- 200 psi/13.8 bar non-shock cold working pressure
- Non-rising stem
- Solid wedge
- Screw-in bonnet
- Dezincification resistant
- Class 125 threaded end x hose thread with cap and chain
The NIBCO® bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. Non-rising stem gate valves are used when shutoff is required and a space saving is a premium. The valve features a hose cap and chain to provide accessibility for drainage with a typical garden hose. The solid wedge and integral seats make the gate valve a good choice for a broad range of services. The NIBCO® bronze gate valve may be used in commercial, industrial and general utility services, where the need for draining lines is necessary. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5-year 125% limited warranty.
| Type | Non-Rising Stem |
| Nominal Size | 3/4 in |
| End Style | FNPT x Hose Cap |
| Material | Bronze |
| Series | 113HC |
| Actuator Type | Handwheel |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Pressure Class | 125 lb |
| Pressure Rating | 200 psi |
| Softgoods Material | Aramid Fiber |
| Top to Inlet Center | 5.06 in |
| Trim Material | Silicon Bronze |
| Brand | NIBCO® |
| Package Width | 3.25 in |
| Package Height | 3.312 in |
| UNSPSC | 40141613 |
| Package Length | 6.5 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923616579 |
| Manufacturer Part Number | NL0F808 |
5 Years Limited
MSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Commercial, Industrial and General Utility Services
