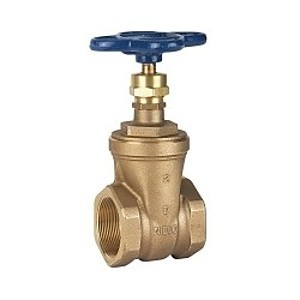

133 Non-Rising Stem Gate Valve, 3/4 in, FNPT, Bronze
PartNIBT13334
MFGNL1J008
Description
NIBCO® Gate Valve, Series: T-133, 3/4 in Nominal, Thread End Style, 300 psi Pressure, 150 lb Pressure Class, Media: Air/Gas/Water, Handwheel Actuator, 2.51 in Inlet to Outlet Length, 3.91 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, Aramid Fiber Softgoods, Domestic
Notice
Price/Availability Accessible On Login- 150 psi/10.3 bar saturated steam to 366 deg F/185 deg C
- 300 psi/20.7 bar non-shock cold working pressure
- Class 150 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- The NIBCO bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required
- The female threaded ends allow for ease of installation
- Non-rising stem gate valves are used when shutoff is required and a space saving is necessary
- The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services
The NIBCO® bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. The female threaded ends allow for ease of installation. Non-rising stem gate valves are used when shutoff is required and a space saving is necessary. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5-year 125% limited warranty.
| Type | Non-Rising Stem |
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Material | Bronze |
| Series | 133 |
| Actuator Type | Handwheel |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 2.51 in |
| Media | Water/Gas/Air |
| Pressure Class | 150 lb |
| Pressure Rating | 300 psi |
| Softgoods Material | Aramid Fiber |
| Top to Inlet Center | 3.91 in |
| Trim Material | Silicon Bronze |
| Brand | NIBCO® |
| Package Width | 7.937 in |
| Package Height | 3.812 in |
| UNSPSC | 40141613 |
| Package Length | 9.25 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923617460 |
| Manufacturer Part Number | NL1J008 |
5 Years Limited
MSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For commercial and industrial applications including hot and cold water, HVAC, steam, compressed air, gas and other general utility services
