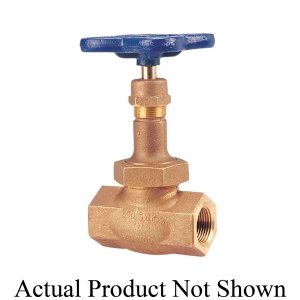

276-AP Rising Stem Globe Valve, 2 in, FNPT, Bronze
PartNIBT276AP2
MFGNL3ZN0D
Description
NIBCO® Globe Valve, Series: T-276-AP, 2 in Nominal, FNPT, 600 psi, 300 lb, Media: Water, Handwheel Actuator, 6 in Inlet to Outlet Length, 9-1/4 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, Aramid Fiber, Domestic
Notice
Price/Availability Accessible On Login- 300 psi/20.7 bar saturated steam to 421 deg F/216 deg C
- 600 psi/41.4 bar non-shock cold working pressure
- Union bonnet
- Renewable stainless steel full plug disc
- Dezincification resistant
- Class 300 threaded end connections
The NIBCO® bronze globe valve is recommended for bi-directional service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. The globe valve is used for throttling or regulating flow. The NIBCO® bronze globe valve features a union bonnet with replaceable seat and renewable full plug disc. It is equipped with female threads ends for ease of installation. This valve is ideal for higher pressure steam and the full plug disc allows for closer throttling of flow. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® globe valves are backed by the NIBCO® 5-year 125% limited warranty.
| Type | Rising Stem |
| Nominal Size | 2 in |
| End Style | FNPT |
| Material | Bronze |
| Series | 276-AP |
| Actuator Type | Handwheel |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 6 in |
| Media | Water |
| Pressure Class | 300 lb |
| Pressure Rating | 600 psi |
| Softgoods Material | Aramid Fiber |
| Top to Inlet Center | 9-1/4 in |
| Trim Material | Silicon Bronze |
| Brand | NIBCO® |
| Package Width | 10.375 in |
| Package Height | 6.687 in |
| UNSPSC | 40141611 |
| Package Length | 13.625 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923630247 |
| Manufacturer Part Number | NL3ZN0D |
5 Years Limited
MSS SP-80|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For commercial and industrial applications including hot and cold water, HVAC, steam, compressed air, gas and other general utility services
