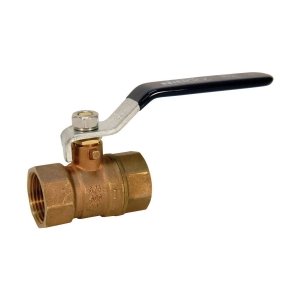

2-Piece Ball Valve, 2 in, FNPT, Standard Port, Plated Brass Ball, Bronze
PartNIBT580A2
MFGNL9600D
Description
NIBCO® Ball Valve, 2-Piece, Series: T-580-A, 2 in Nominal, FNPT, 400 psi, Standard Port, Media: Gas/Water, 1.46 in Orifice, Standard Lever Handle Actuator, Polished Chrome Brass Ball, 3.73 in Inlet to Outlet Length, 2.95 in Top to Inlet Center, Brass Body, Brass Trim, Fluorocarbon/PTFE, Import
Notice
Price/Availability Accessible On Login- Valve pressure rating 400 psi/28 bar non-shock cold working pressure
- Blow-Out proof stem
- Threaded end connections
The NIBCO® brass ball valve with threaded end connections provides bubble-tight shut-off at 400 psi. The valve's PTFE seat ring and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features threaded end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2-year limited warranty.
| Nominal Size | 2 in |
| End Style | FNPT |
| Port Type | Standard |
| Construction | 2-Piece |
| Material | Bronze |
| Ball Material | Plated Brass |
| Actuator Type | Standard Lever |
| Body Material | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.73 in |
| Media | Gas/Water |
| Orifice Size | 1.46 in |
| Pressure Rating | 400 psi |
| Series | T-580-A |
| Softgoods Material | Fluorocarbon/PTFE |
| Top to Inlet Center | 2.95 in |
| Trim Material | Brass Stem |
| Brand | NIBCO® |
| Package Width | 4.92 in |
| Package Height | 3.15 in |
| UNSPSC | 40141607 |
| Package Length | 8.27 in |
| Country of Origin | CN |
| Manufacturer | NIBCO Inc. |
| UPC | 039923295767 |
| Manufacturer Part Number | NL9600D |
2 Years Limited
PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Hot/Cold Water and Gas Applications
