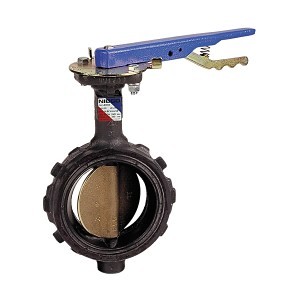

Wafer Style Butterfly Valve, Lever Handle, 5 in, Flange, 200 psi, Ductile Iron
PartNIBWD200035
MFGNLH100J
Description
NIBCO® Butterfly Valve, Wafer Style, Series: WD-2000, 5 in Nominal, 125/150 lb, 225 deg F, Media: Water, Locking Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem) Stem & Pin Material, EPDM, Domestic
Price/Availability Accessible On Login
- 225 deg F continuous and 250 deg F intermittent service
- EPDM molded-in seat liner
- Operating mechanism, Bare stem, infinite position plate and lock, lever lock, manual gear operator
- Not recommended for steam service
- The NIBCO wafer type butterfly valve provides bubble-tight shutoff at 200 PSI
The NIBCO® wafer type butterfly valve provides Bubble tight shut-off at 200 psi. The wafer valve is ideal for commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water. The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. The valve's unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO® 5-year 125% limited warranty.
| Type | Wafer Style |
| Actuator Type | Lever Handle |
| Nominal Size | 5 in |
| End Style | Flange |
| Pressure Rating | 200 psi |
| Material | Ductile Iron |
| Body Material | Ductile Iron |
| Dimensions | 5.13 in ID |
| Disc Material | Aluminum Bronze |
| Domestic/Import | Domestic |
| Media | Water |
| Pressure Class | 125/150 lb |
| Series | WD-2000 |
| Softgoods Material | EPDM |
| Stem & Pin Material | 416 Stainless Steel (Stem) |
| Temperature Rating | 225 deg F |
| Trim Material | 416 Stainless Steel Stem/Aluminum Bronze Disc |
| Brand | NIBCO® |
| Package Width | 11 in |
| Package Height | 6 in |
| UNSPSC | 40141620 |
| Package Length | 15.125 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923717993 |
| Manufacturer Part Number | NLH100J |
5 Years Limited
MSS SP-67|MSS SP-25|US Coast Guard Category A|Vermont Act 193|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For commercial and some light industrial process applications including HVAC and vacuum services, in addition to hot and cold potable water
