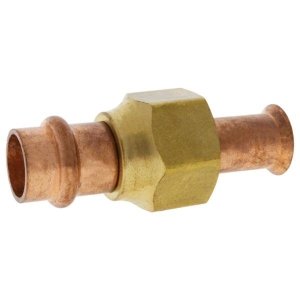

Flare Adapter, 1/2 in, Press x Flare, Copper
PartNPAPF12
MFG900605RPC
Description
NIBCO®, 900605RPC, Flare Fitting, Series: PC9635, Fitting/Connector: Adapter, 1/2 in Nominal, Press x SAE Flare End Style, 700 psi Pressure, -40 to 250 deg F, Copper, Domestic
Price/Availability Accessible On Login
- 500mi Vacuum
- Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
- Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
The NIBCO® PressACR SAE Flare features an inboard bead and gray HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The SAE Flare has a press and a flare connection. The fitting is used to adapt from a threaded flare connection to a press connection. NIBCO press fittings are the fastest, easiest way to join copper tubing.
| Fitting/Connector Type | Adapter |
| Nominal Size | 1/2 in |
| Type | Flare |
| End Style | Press x Flare |
| Material | Copper |
| Domestic/Import | Domestic |
| Pressure Rating | 700 psi |
| Series | PC9635 |
| Temperature Rating | -40 to 250 deg F |
| Brand | NIBCO® |
| Package Width | 1.04 in |
| Package Height | 0.94 in |
| Alternate Part Number 1 | PC963512 |
| Package Length | 2.4 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923418517 |
| Manufacturer Part Number | 900605RPC |
5 Years Limited
UL 207|ISO 5149-2|ISO I4903|ISO 14903|ISO 14903|ISO 14903|UL 109LL Compliant NSF/ANSI 372|PROP 65
Air Conditioning/Refrigeration (ACR), HVAC, Glycol
