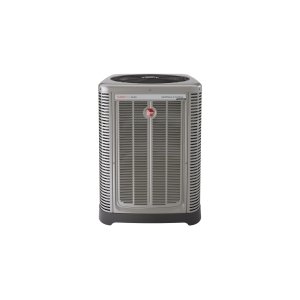

Classic® Plus Two Stage Condensing Unit, 4 ton, 48 Kbtu/hr Cooling, 17 SEER, 208-240 VAC, 1 ph
PartRUURA1748AJ2CB
MFGRA1748AJ2CB
Description
Rheem® Air Conditioner, Two Stage, Series: Classic Plus® RA17, 4 ton Nominal, 13 EER, 17 SEER, 208/230 V AC, 1 ph, 60 Hz Power Source, 50 A Fuse, 4251 cfm Flow Rate, Communicating Control, R-410A Refrigerant, 73 dBA Sound Level, 7/8 in Suction Line, 3/8 in Discharge Line, 1/2 hp Motor, Gray, 35-3/4 in L x 35-3/4 in W x 51 in H Dimensions, Import
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
- EcoNet™ enabled product, the EcoNet™ smart home system provides advanced air and water control for maximum energy savings and ideal comfort
- New composite base pan-dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system for a long-lasting professional finish
- The 2-stage copeland Scroll™ Ultra Tech™ compressor modulates between two capacity settings - 67% and 100% - providing more precise temperature control, lower humidity and greater efficiency in comparison to 1-stage compressors
- Modern cabinet aesthetics-increased curb appeal with visually appealing design
- Curved louver panels - provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice - optimizes airflow and reduces unit sound
- Rust resistant screws-confirmed through 1500-hr salt spray testing
- PlusOne™ expanded valve space-3 in, 4 in and 5 in service valve space provides a minimum working area of 27 sq-in for easier access
- PlusOne™ triple service access-15 in wide, industry leading corner service access makes repairs easier and faster
- Diagnostic service window with two-fastener opening - provides access to the high and low pressure
- External gauge port access-allows easy connection of low-loss gauge ports
- Single-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain out of the box performance
- 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal
- Fan motor harness with extra-long wires allows unit top to be removed without disconnecting fan wire
- High and low pressure standard on all models
- 5.3 FLA condenser motor
- 646 rpm condenser motor
- 32 A miimum circuit ampicity
The EcoNet™ enabled RUUD Classic Plus™ series two-stage air conditioner offers the solid technology and energy-saving performance you've come to expect from RUUD. It's the quiet indoor comfort your family deserves.
| Type | Two Stage |
| Cooling Capacity | 48 Kbtu/hr |
| Nominal Capacity | 4 ton |
| Series | Classic® Plus |
| SEER Rating | 17 |
| Voltage Rating | 208-240 VAC |
| Phase | 1 ph |
| Air Flow Rate | 4251 cfm |
| Amperage Rating | 21.2 A |
| Circuit Amperage Rating | 32 |
| Color | Gray |
| Compressor Type | Scroll |
| Control Type | Communicating |
| Decibel Rating | 73 |
| Dimensions | 35-3/4 in L x 35-3/4 in W x 51 in H |
| Discharge Line Size | 3/8 in |
| Domestic/Import | Import |
| EER Rating | 13 |
| Fins per Inch | 22 |
| Flow Rate | 4251 cfm |
| Full Load Current | 5.3 A |
| Fuse Size | 50 A |
| Liquid Line Size | 3/8 in |
| Locked Rotor Amperage | 104 |
| Maximum Breaker Current Rating | 50 A |
| Maximum Piping Length | 15 ft |
| Motor HP | 1/2 hp |
| Motor Speed | Variable |
| Number of Blades | 1 |
| Power Source | 208/230 V AC, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| Sound Level | 73 dBA |
| Stages Cool | 2 |
| Suction Line Size | 7/8 in |
| Brand | RUUD® |
| Package Width | 38.38 in |
| Package Height | 51 in |
| UNSPSC | 40101701 |
| Package Length | 38.38 in |
| Item Width | 39.64 in |
| Item Length | 39.37 in |
| Country of Origin | MX |
| Item Height | 53.56 in |
| Manufacturer | Rheem Manufacturing |
| UPC | 662021388477 |
| Manufacturer Part Number | RA1748AJ2CB |
Conditional Parts (Registration Required): Ten (10) Years, Parts: Ten (10) Years
UL Listed, ABS Quality Evaluations, Inc. Management System Certification, ANAB Accredited, RvA Accredited
