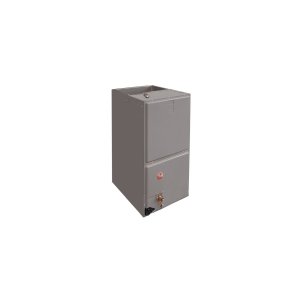

Heat Pump Air Handler, 3 ton, 36 Kbtu/hr
PartRUURH1T3621MTANJA
MFGRH1T3621MTANJA
Description
Rheem® Air Handler, Medium Efficiency 1-Stage, Series: RH1T, 2.5 to 3 ton Nominal, 30000 to 36000 Btu/hr Cooling, 800 to 1600 cfm Flow Rate, 208/240 V, 1 ph, 60 Hz Power Source, 3/8 in Liquid Line, 7/8 in Suction Line, 15 A Fuse, 19-1/2 x 10-5/16 in Supply Air Opening, 19-3/8 in W x 19-3/4 in D Return Air Opening, Non-Communicating Control, ECM Motor, 21 in W x 21.69 in D x 50.5 in H Dimensions
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- RH1T feature a constant torque motor (ECM) which provides enhanced SEER performance with most Rheem® outdoor units
- Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications
- Factory-installed indoor coil
- Sturdy cabinet construction with 1 in [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
- Field-installed auxiliary electric heater kits provide exact heat for indoor comfort, kits include circuit breakers which meet UL and cUL requirements for service disconnect
- Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
- All models meet or exceed 330 to 400 cfm [156 to 189 L/s] per ton at 0.3 in [0.7 kPa] of external static pressure
- Enhanced airflow up to 0.7 in external static pressure
| Type | Heat Pump |
| Nominal Capacity | 3 ton |
| Cooling Capacity | 36 Kbtu/hr |
| Control Type | Non-Communicating |
| Dimensions | 21 in W x 21.69 in D x 50.5 in H |
| Filter Size | 20 x 20 x 2 in |
| Flow Rate | 800 to 1600 cfm |
| Fuse Size | 15 A |
| Heating Capacity | 36 Kbtu/hr |
| Liquid Line Size | 3/8 in |
| Motor Type | ECM |
| Power Source | 208/240 V, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| Return Air Opening | 19-3/8 in W x 19-3/4 in D |
| Suction Line Size | 7/8 in |
| Supply Air Opening | 19-1/2 x 10-5/16 in |
| Brand | RUUD® |
| Package Width | 24 in |
| Package Height | 50.75 in |
| UNSPSC | 40101709 |
| Package Length | 25.31 in |
| Item Width | 24 in |
| Item Length | 25.31 in |
| Item Height | 50.75 in |
| Manufacturer | Rheem Manufacturing |
| UPC | 662021358890 |
| Manufacturer Part Number | RH1T3621MTANJA |
Conditional Parts (Registration Required): Ten (10) Years
AHRI, ISO 9001:2008, UL Listed
