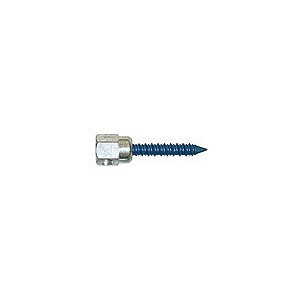

SIDEWINDER® Threaded Rod Anchor, 3/8 in, 1-3/4 in L, Electrogalvanized
PartSAMSC13438
MFG8061957
Description
Sammys® Sidewinder™ Rod Anchor, Series: SWC 20, 5/16 in Dia, 3/8-16 Rod, Steel, 1-3/4 in Overall Length, AF End Drilled, 5/8 in Head, 2450 lb, Climaseal® Electro-Zinc
Price/Availability Accessible On Login
Documentation
- Easy two step process (drill hole and drive Sammy concrete anchor)
- 1/4 in pre-drilled pilot hole required
- Reduces installation cost
- Vertical mount
- 1/4 in hole size
- Grade C1022 screw and C1010 cap
- For concrete
| Type | Threaded Rod |
| Size | 3/8 in |
| Length | 1-3/4 in |
| Finish | Electrogalvanized |
| Series | SIDEWINDER® |
| Diameter | 5/16 in |
| Head Size | 5/8 in |
| Head Type | AF End-Drilled |
| Load Capacity | 2450 lb |
| Material | Steel |
| Overall Length | 1-3/4 in |
| Rod Size | 3/8 in |
| Brand | Sammys® |
| UNSPSC | 31162100 |
| Manufacturer | ITW Buildex and Illinois Tool Works |
| UPC | 092097920156 |
| Manufacturer Part Number | 8061957 |
FM Approved
Installs horizontally into the side of concrete structures for hanging threaded rod
Price/Availability Accessible On Login
Documentation
Sammys®SIDEWINDER® Threaded Rod Anchor, 3/8 in, 1-3/4 in L, Electrogalvanized
