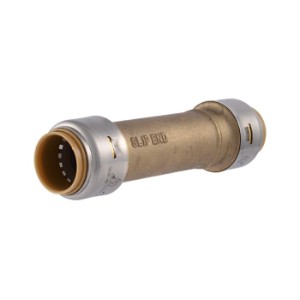

Max™ No-Stop Coupling, 3/4 in, Push, Brass
PartSHBNSC34
MFGUR3016
Description
Sharkbite®, UR3016, Slip Coupling, Fitting/Connector: Slip Coupling, 3/4 in Nominal, Push-to-Connect End Style, 200 psi Pressure, 200 deg F, Lead-Free DZR Brass, 1.3 in H x 4.9 in L Dimensions
Price/Availability Accessible On Login
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion force compared to SharkBite 1st Generation fittings
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
The SharkBite Slip Coupling is a plumbing repair fitting that allows you to make quick, easy repairs to Copper or CPVC pipe. This fitting allows up to 2 inches of damaged pipe to be removed and repaired. When making a repair, simply cut out a section of pipe no greater than 2 inches, and connect the slip end of the fitting onto one side. Then, take the Disconnect Clip and slide the slip end of the fitting along the pipe to connect the other pipe. The slip coupling is particularly useful for burst or frozen pipes.
| Fitting/Connector Type | Coupling |
| Type | No-Stop |
| Nominal Size | 3/4 in |
| End Style | Push |
| Material | Brass |
| Series | Max™ |
| Dimensions | 1.3 in H x 4.9 in L |
| Domestic/Import | Import |
| Finish | Rough Brass |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 deg F |
| Brand | Sharkbite® |
| Package Width | 1.32 in |
| Package Height | 1.32 in |
| UNSPSC | 40172601 |
| Package Length | 4.92 in |
| Country of Origin | AU |
| Manufacturer | Reliance Worldwide Corporation |
| UPC | 697285057951 |
| Manufacturer Part Number | UR3016 |
25 Years Limited
ASSE 1061 | CSA B125.3 | NSF/ANSI 14 | NSF/ANSI/CAN 61 | NSF/ANSI/CAN 372 | ASTM E84 | CAN/ULC 5102.2 | UL 263 | ASTM El19 | CAN/ULC 5101
Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial
