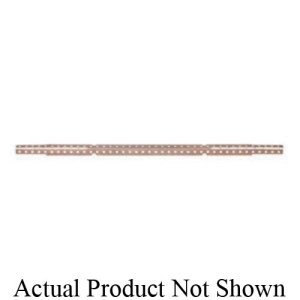

Edge Support System™ Stub Out Bracket With Flat Tabs, 1/8 in Hole, Steel, Galvanized
PartSIO520E24
MFG520-E24
Description
Sioux Chief Edge Support System™ Stub Out Bracket, Series: 520-E, 1/8 in, Steel, Galvanized, 26.8 in L
Price/Availability Accessible On Login
- Edge clamp Patent #7,549,613
- Angle design provides rigid cross brace between studs
- Single clamp support both vertical and horizontal application
- Support any 1/2 in or 3/4 in CTS (copper, PEX or CPVC) tube
- Glue edge clamp to CPVC at horizontal wall penetrations
Sioux Chief 520-E series edge bracketing system shall be used where necessary for securing CTS water supply lines vertically or horizontally within a wood or metal 2 x 4 stud wall. The Edge bracket is galvanized or copper plated steel and is a formed, angle bracket with pilot holes. Bracket shall resist corrosion. Bracket may be used with optional 520-EC series clamps. Hole schedule on bracket has been designed to align with other clamps such as 2-hole galvanized or copper plated pipe straps, plastic pipe or suspension straps, drop ear 90 fittings or other devices. Sioux Chief plastic Edge Clamps™ are specifically designed for the Edge bracket. Position and secure CTS stub out at any desired location on either bracket surface. System shall be approved for use with copper, CPVC, or PEX tube.
| Type | Flat Bracket |
| Dimensions | 26.8 in L |
| Domestic/Import | Domestic |
| Finish | Galvanized |
| Hole Size | 1/8 in |
| Material | Steel |
| Nominal Size | 24 in |
| Series | 520-E |
| Brand | Sioux Chief |
| UNSPSC | 40170000 |
| Country of Origin | US |
| Manufacturer | Sioux Chief |
| UPC | 739236266712 |
| Manufacturer Part Number | 520-E24 |
Glue Edge Clamp to CPVC at horizontal wall penetrations
