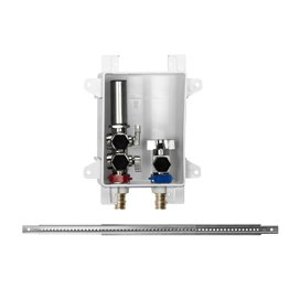

OxBox™ Lavatory Outlet Box With Arrester, 1/2 in, F1960 PEX Grip™ Inlet x 3/8 in Comp Outlet, ABS
PartSIO696G3011WR
MFG696-G3011WR
Description
Sioux Chief OxBox™ Lavatory Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, PEX F1960 Inlet, Compression Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 5-3/4 in W, Import
Price/Availability Accessible On Login
- Patent No 7,360,553 and no 7,735,511
- ABS boxes mount securely to stud or over studs
- With MiniRester water hammer arrester
- Allows for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub outs and installing supply stops
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connections
- The three valve box is perfect for kitchen sink/dishwasher applications
- 1/2 in F1960 Grip™
- Galvanized steel bracket, stainless steel arrester body, polypropylene with two EPDM o-rings piston, chrome-plated DZR brass - no-lead valve
Sioux Chief Ox Box access box with 3 valves shall be used in plumbing systems for safe distribution of hot and/or cold water. Boxes shall provide access for supply line shutoff. Valves shall generally be available with 3/8 in connection outlet. Boxes can be installed with supply lines from above or below, on or between studs. Between-stud installation can utilize a support bracket loaded through the box's integral track. Boxes shall be available with three standard valves or two standard valves and one valve with water hammer arrester. Valves are provided with a temporary nylon test cap. Included arresters shall be certified to ASSE 1010 and valves shall be UPC listed. Valves comply with ASME A112.18.1 and are made from no lead, SCC resistant and DZR material.
| Type | General |
| Material | Plastic |
| Dimensions | 7-1/4 in H x 5-3/4 in W |
| Domestic/Import | Import |
| Inlet Size | 1/2 in |
| Inlet Type | F1960 PEX Grip™ |
| Outlet Size | 3/8 in |
| Outlet Type | Compression |
| Pressure Rating | 250 psi |
| Series | 696 |
| Temperature Rating | 250 deg F |
| Brand | Sioux Chief |
| UNSPSC | 40141700 |
| Country of Origin | CN |
| Manufacturer | Sioux Chief |
| UPC | 739236102386 |
| Manufacturer Part Number | 696-G3011WR |
Debris covers included to protect boxes from drywall mud and paint
ASME A112.18.1|IPC Certified|NSF 61|IAPMO Listed|UPC Certified
