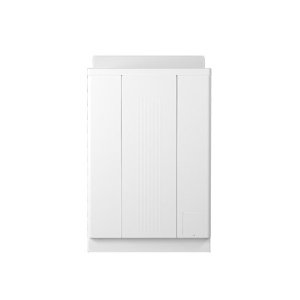

Select® Table Top Electric Water Heater, 38 gal, 9 kW, 240 VAC
PartSTAN40ETT
MFG100265543
Description
State Industries Electric Water Heater, Table Top, Series: Select®, 38 gal Tank, 240 V AC, 9000 W, 1 ph, 3/4 in NPT Water Connection, (2) Copper/Incoloy® Heating Element, 0.88 Energy Factor, Side Mount, 21 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, 24 in W x 36 in H
Price/Availability Accessible On Login
- Convenient flat porcelain surface at 36 in H, providing extra counter space wherever installed, all plumbing and electrical connections are made through the back of the water heater, this heater is equipped with a PEX cross-linked polymer dip tube
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
- Enhanced-flow brass drain valve
- Our standard residential water heaters have a solid brass, tamper-resistant, enhanced flow, ball type, drain valve
- 1 ph water heater 60 Hz
| Tank Capacity Range | 36 to 40 gal |
| Power Rating | 9 kW |
| Voltage Rating | 240 VAC |
| Warranty Years | 6 |
| Type | Table Top |
| Blanket (Yes/No) | No |
| Series | SELECT® |
| Tank Capacity | 38 gal |
| ASME Yes/No | No |
| Dimensions | 24 in W x 36 in H |
| Energy Factor | 0.88 |
| Heating Element | (2) Copper/Incoloy® |
| Mounting Type | Side |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 21 gph at 90 deg F Rise |
| Water Connection | 3/4 in FNPT |
| Brand | State Industries |
| Package Width | 26 in |
| Package Height | 41.5 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | EN6382OTT45 |
| Package Length | 27 in |
| Manufacturer | A. O. Smith |
| UPC | 091196059040 |
| Manufacturer Part Number | 100265543 |
6 Years Limited
ASHRAE/IESNA 90.1|CSA Certified|UBC|CEC and HUD National Code|UL 174 Certified
Residential
