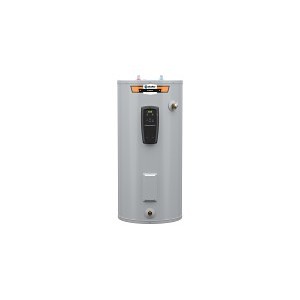

ProLine® Short Electric Water Heater, 50 gal, 5.5 kW, 240 VAC
PartSTAN50ESO
MFG100362956
Description
State Industries, 100362956, Electric Water Heater, Series: 100, 50 gal Tank, 240 VAC, 5500 W Power, 1 ph, 3/4 in Water Connection, Incoloy® Stainless Steel Heating Element, 0.92 Energy Factor, 21 gph at 90 deg F Rise Recovery Rate, 150 psi Pressure, Short Tall or Short, ASME: Yes, 49-1/4 in H x 23 in W x 23 in D x 23 in Dia Dimensions
Price/Availability Accessible On Login
- Utility Grid-Capable
- Equipped with Demand Response (CTA-2045 EcoPort)
- Communication port that allows for participation in Utility Demand Response programs (Module needed from local utility)
- Meets state of Washington and Oregon requirements
- Standard and vacation operating modes
- Six-segment display
- Diagnostic feedback
- Element Dry-Fire protection
- Dual 5500 watt elements provide fast recovery and reliable operations
- It also features a longer lasting stainless steel lower element
- Eco-friendly non-CFC foam insulation, heat traps and other features combine to yield a higher Uniform Energy Factor that maximizes savings on operating costs
Take advantage of advanced utility savings with ProLine® Grid-Capable water heaters. The built-in CTA-2045 port allows homeowners to connect to local Utility Smart Grid Programs where available. Meets state of Washington and Oregon requirements. With a 50-gallon (nominal) tank delivering 4,500 watts, the EE6-50-DURS delivers a first hour rating of 67 gallons at an Uniform Energy Factor of 0.92. The Coregard™ sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 6-year limited tank warranty.
| Tank Capacity Range | 46 to 51 gal |
| Power Rating | 5.5 kW |
| Voltage Rating | 240 VAC |
| Warranty Years | 6 |
| Type | Short |
| Series | ProLine® |
| Tank Capacity | 50 gal |
| ASME Yes/No | Yes |
| Dimensions | 49-1/4 in H x 23 in W x 23 in D x 23 in Dia |
| Energy Factor | 0.92 |
| Heating Element | Incoloy® Stainless Steel |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 21 gph at 90 deg F Rise |
| Tall or Short | Short |
| Water Connection | 3/4 in |
| Brand | State Industries |
| Package Width | 24 in |
| Package Height | 52.75 in |
| Alternate Part Number 1 | EE6-50-DURS 100 |
| Package Length | 26.25 in |
| Manufacturer | A. O. Smith |
| UPC | 091196591779 |
| Manufacturer Part Number | 100362956 |
6 Years Limited Tank and Parts
CSA Certified|UL Listed|Blue Diamond Glass Coating
Residential
