00 Recirculation Pump, 1/8 hp, 120 VAC, 1 ph, Stainless Steel
PartTAC0011SF4
MFG0011-SF4
Description

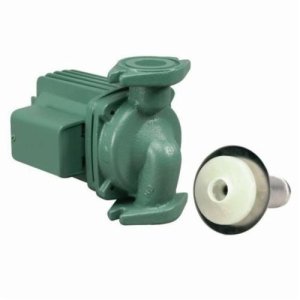

Taco®, 0011-SF4, Cartridge Circulator Pump, Stainless Steel, Series: 11 Series, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 3/4, 1-1/4, 1, 1-1/2 in Outlet, 31 ft Maximum Head, 1/8 hp Power, 115 V AC, 1.76 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/2 in L x 6-1/2 in H Dimensions
Price/Availability Accessible On Login
- Universal flange to flange dimensions
- Cast iron or stainless steel casing
- Aluminum stator housing
- EPDM O-ring seals and gasket
- Carbon bearing
- Ceramic shaft
- Non metallic impeller
- Direct drive-Low power consumption
- Exclusive ACB Anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
- High velocity performance, compact design
- No mechanical seal
- Quiet, Efficient operation
- Self lubricating
- Unique replaceable cartridge design , field serviceable
- Unmatched reliability-maintenance free
The high velocity series Taco® 0011 cartridge circulator is designed for high head/medium flow applications in residential or light commercial hydronic heating, radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0011 is ideal for installations where space is a premium. Available in Cast Iron or Stainless Steel construction.
| Power Rating | 1/8 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Material | Stainless Steel |
| Series | 00 |
| Amperage Rating | 1.76 A |
| Bearing Type | Carbon |
| Dimensions | 7-1/2 in L x 6-1/2 in H |
| Flow Rate | 31 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/8 hp |
| Impeller Type | Non-Metallic |
| Inlet Size | 3/4, 1-1/4, 1, 1-1/2 in |
| Maximum Head | 31 ft |
| Maximum Pressure | 125 psi |
| Motor Speed | 3250 rpm |
| Mounting Type | Flange |
| Outlet Size | 3/4, 1-1/4, 1, 1-1/2 in |
| Temperature Rating | 40 to 230 deg F |
| Type | Single Phase |
| Brand | Taco® |
| UNSPSC | 40151504 |
| Country of Origin | US |
| Manufacturer | Taco |
| UPC | 687752620825 |
| Manufacturer Part Number | 0011-SF4 |
Gaskets
3 Years
cULus Listed|NSF Approved
Fan Coil Units, High Pressure Drop Boilers, Heat Exchangers, Large Radiant Heating Systems, Large Heat and Recovery/Geothermal
Price/Availability Accessible On Login
Taco®00 Recirculation Pump, 1/8 hp, 120 VAC, 1 ph, Stainless Steel
