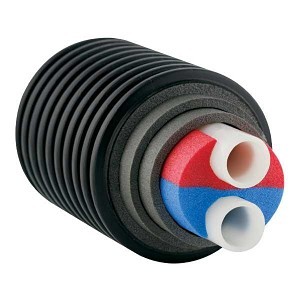

Ecoflex® Pre-Insulated PEX Tube, 1-1/2 in, Black, 300 ft L
PartUPN5026915
MFG5026915
Description
Uponor Ecoflex® Thermal Pipe, Twin, 1-1/2 in Nominal, 1.244 in Inside Dia, 1-5/8 in Outside Dia, 1.06 in Wall Thickness, 0.25 Btu-in/hr-sq-ft-deg F, 9.84, 73.4 to 200 deg F, Polyethylene
Price/Availability Accessible On Login
- Corrugated, seamless high-density polyethylene (HDPE), UV-protected jacket
- Multilayered, closed-cell, crosslinked polyethylene (PEX) foam insulation
- 0.1 g/100 sq in/day vapour permeability
- 32 in bend radius
- 73.4 deg F at 160 psi hydrostatic rating
- 180 deg F at 100 psi hydrostatic rating
- 200 deg F at 80 psi hydrostatic rating
- Install Ecoflex thermal twin pre-insulated pipe in buried or aboveground hydronic radiant heating and cooling applications
- Ecoflex end caps are required on all exposed ends of ecoflex pipes to avoid ground water contamination
- Crosslinked polyethylene material
- SDR-9 engel method of manufacture
- Use ProPEX fittings up to 3 in or WIPEX fittings for the whole range
Ecoflex thermal twin pipes are designed for fluid transfer in heating and cooling applications. The Wirsbo hePEX service pipes in Ecoflex thermal twin piping are manufactured by the Engel-method (PEX-a) process and are listed to ASTM F876 and F877. An oxygen-diffusion barrier extruded onto the service pipe dramatically reduces the amount of oxygen molecules that can migrate through the tubing wall. This oxygen-diffusion barrier protects ferrous components within the fluid pathway from corrosion. The pipe is surrounded by multi-layer, closed-cell, PEX-foam insulation and a water-resistant, corrugated HDPE jacket, making it ideal for direct-burial applications.
| Type | Pre-Insulated Standard |
| Color | Black |
| Nominal Size | 1-1/2 in |
| Length | 300 ft |
| Series | Ecoflex® |
| Inside Diameter | 1.244 in |
| Material | Polyethylene |
| Outside Diameter | 1-5/8 in |
| R Factor | 9.84 |
| Temperature Rating | 73.4 to 200 deg F |
| Thermal Conductivity | 0.25 Btu-in/hr-sq-ft-deg F |
| Wall Thickness | 1.06 in |
| Brand | Uponor |
| Package Width | 6.9 in |
| Package Height | 6.9 in |
| UNSPSC | 30141500 |
| Package Length | 12 in |
| Manufacturer | Uponor |
| UPC | 673372215299 |
| Manufacturer Part Number | 5026915 |
6.9 in Jacket, 300 ft Coil
ASTM F876/F877/F1960|CSA B137.5|cNSFus-rfh|cNSFus-pw|NSF/ANSI 14/61|PEX 5106|U.P. Code
Pre-Insulated Pipe Systems Radiant Heating and Cooling Systems Snow and Ice Melting Systems Permafrost Protection Systems Turf Conditioning Systems
