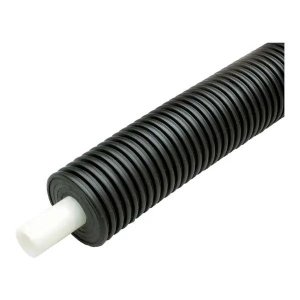

Ecoflex® Pre-Insulated PEX Tube, 1-1/4 in, Black, 500 ft L
PartUPN5215513
MFG5215513
Description
Uponor Ecoflex® Potable Single Pipe, 1-1/4 in Nominal, 1.054 in Inside Dia, 1-3/8 in Outside Dia, 500 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
Price/Availability Accessible On Login
- Crosslinked polyethylene (PEX-a) engel method, PEX 5106, NSF certified SDR-9 service pipe
- Multilayered, closed-cell, crosslinked polyethylene (PEX) foam insulation with a thermal conductivity of 0.25 Btu in/sq-ft/hr/deg F, vapor permeability of 0.1g/100 sq-in/day
- Corrugated seamless high-density polyethylene (HDPE), UV protected jacket
- Operating limits: 200 deg F at 80 psi, 180 deg F at 100 psi, 73 deg F at 160 psi
- 9.07 R-value
- 12 in bend radius
- 83 x 53 in full coil
- 1.73 in Thk foam
Ecoflex® potable PEX single pipes are designed for potable-water distribution applications. The Uponor AquaPEX® service pipes in Ecoflex® potable PEX piping are manufactured by the Engel-method (PEX-a) process and are listed to ASTM F876 and F877. The pipe is surrounded by multi-layer, closed-cell, PEX-foam insulation and a water-resistant, corrugated HDPE jacket, making it ideal for direct-burial applications.
| Type | Pre-Insulated Standard |
| Color | Black |
| Nominal Size | 1-1/4 in |
| Length | 500 ft |
| Series | Ecoflex® |
| Domestic/Import | Domestic |
| Inside Diameter | 1.054 in |
| Material | Cross Linked Polyethylene |
| Outside Diameter | 1-3/8 in |
| Temperature Rating | 200 deg F |
| Working Pressure | 80 |
| Brand | Uponor |
| Package Width | 5.5 in |
| Package Height | 5.5 in |
| UNSPSC | 40180000 |
| Package Length | 12 in |
| Country of Origin | US |
| Manufacturer | Uponor |
| UPC | 673372242271 |
| Manufacturer Part Number | 5215513 |
ASTM F876|ASTM F877|ASTM F1960|ASTM F2023|AWWA C904|CSA B137.5|cNSFus-pw|IPC|ANSI/NSF 14|ANSI/NSF 61|NSPC|NPC of Canada|UP Code
Pre-Insulated Pipe Systems, Permafrost Prevention Systems, Plumbing Systems
