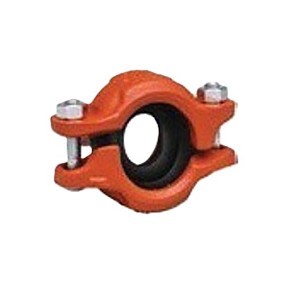

Coupling, 1-1/4 x 1 in, Groove, Ductile Iron, Enamel Painted
PartVBHRC1141
MFGLB05115PE0
Description
Victaulic®, LB05115PE0, Reducing Coupling, Series: 115, Fitting/Connector: Coupling, 1-1/4 x 1 in Nominal, OGS x IGS™ Grooved End Style, 1-1/4 in Thickness, 4-3/4 in Length, 365 psi Pressure, Ductile Iron, Orange Painted, 1.66 x 1.315 in OD x 2.63 in H Dimensions
Price/Availability Accessible On Login
- Grade "E" EPDM (type A) Vic-Plus™ pre-lubricated gasket
| Fitting/Connector Type | Coupling |
| Nominal Size | 1-1/4 x 1 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Color | Orange |
| Dimensions | 1.66 x 1.315 in OD x 2.63 in H |
| Industry Standards | ASTM A536 Grade 65-45-12 |
| Length | 4-3/4 in |
| Pressure Rating | 365 psi |
| Series | 115 |
| Thickness | 1-1/4 in |
| Brand | Victaulic® |
| UNSPSC | 40142000 |
| Manufacturer | Victaulic |
| UPC | 883481816878 |
| Manufacturer Part Number | LB05115PE0 |
EPDM Rubber Gasket, Carbon Steel Track Bolts and Hex Nuts
1 Year Limited
ASTM A536 Grade 65-45-12|ASTM A449/A563 Grade B/B633 ZN/FE5 Type III Bolts and Nuts|cULus Listed|FM Approved|LPCB Certified|VDS Certified
For 1 in SCH 10 and SCH 40/STD carbon steel sprinkler pipe
Price/Availability Accessible On Login
Victaulic®Coupling, 1-1/4 x 1 in, Groove, Ductile Iron, Enamel Painted
