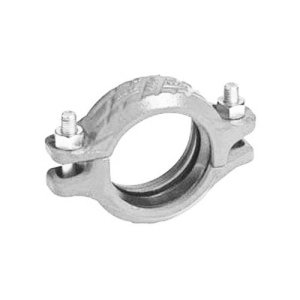

Rigid Coupling, 5 in, Groove, Ductile Iron, Galvanized
PartVFGC5
MFGL050007GE0
Description
Victaulic® Zero-Flex™ Pipe Rigid Coupling, Series: 7 Series, Fitting/Connector Type: Coupling, 5 in Nominal, Grooved, 9.89 in Length, 750 psi, Ductile Iron, Hot Dipped Galvanized, 5.563 in OD x 2.07 in W
Price/Availability Accessible On Login
- Grade E EPDM gasket
- Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown
The unique angled pad design adjusts to standard pipe tolerances to positively clamp the pipe to resist flexural and torsional loads. Working pressures are based on standard wall carbon steel pipe roll or cut grooved in accordance with Victaulic specifications.
| Fitting/Connector Type | Coupling |
| Type | Rigid |
| Nominal Size | 5 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Galvanized |
| Dimensions | 5.563 in OD x 2.07 in W |
| Length | 9.89 in |
| Pressure Rating | 750 psi |
| Series | 7 |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 688304458590 |
| Manufacturer Part Number | L050007GE0 |
cULus Listed|Ductile iron conforming to ASTM A-536 Grade 65-45-12|FM Approved|LPCB Approved|VdS Approved
