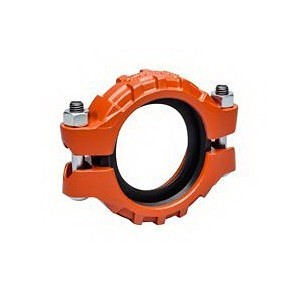

Coupling, 5 in, Groove, Ductile Iron, Enamel Painted
PartVFPQFC5
MFGL050177PEN
Description
Victaulic® QuickVic™ Installation-Ready™ Pipe Coupling, Flexible, Series: 177N, Fitting/Connector Type: Coupling, 5 in Nominal, Grooved, 11.03 in Length, 1000 psi, Ductile Iron, Orange Enamel, 5-9/16 in OD
Price/Availability Accessible On Login
- Features Installation-Ready™ technology
- Joins roll or cut grooved pipe, grooved fittings, valves, and accessories
- Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement
- 8.03 in Dia x 11.03 in L pre-assembled, 7.31 in Dia x 11.32 in L x 2.245 in W joint assembled
- Grade EHP gasket
The Style 177N QuickVic flexible coupling is Installation-Ready™ and joins 2 to 8 in/50 to 200 mm standard roll grooved and cut grooved steel pipe.
| Fitting/Connector Type | Coupling |
| Nominal Size | 5 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Dimensions | 5-9/16 in OD |
| Length | 11.03 in |
| Pressure Rating | 1000 psi |
| Series | 177N |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 883481612715 |
| Manufacturer Part Number | L050177PEN |
cUL Listed|Ductile Iron conforming to ASTM A-536 Grade 65-45-12|FM Approved|NSF Approved
Slurry/Tailings Lines, Air/Water Supply Lines, Hot/Cold Water Systems, Utility Piping and Process Piping
