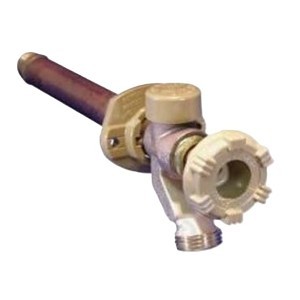

Hose Bibb, 1/2 in Inlet, MNPT or C, Rough Brass
PartWDF17CP12MH
MFG17CP-12-MH
Description
Woodford® Wall Faucet, Anti-Siphon Freezeless, Series: 17 Series, 1/2 in Nominal, MNPT x Female C, 10 in Wall Thickness, 125 psi, Wheel, 120 deg F, 15/16 in Dia Inlet, Domestic
Price/Availability Accessible On Login
Documentation
- This unit offers anti-siphon protection
- 3/4 in male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No lead solder
- Standard "O" size seat washer
- Powder-coated, die cast aluminum handle
- Adjustable polycarbonate wall flange
The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
| Type | Hose Bibb |
| Inlet Size | 1/2 in |
| Inlet Type | MNPT or C |
| Handle Type | Standard |
| Finish | Rough Brass |
| ADA Compliance (Yes/No) | No |
| Dimensions | 15/16 in Dia Inlet |
| Domestic/Import | Domestic |
| End Style | MNPT x Female C |
| Nominal Size | 1/2 in |
| Pressure Rating | 125 psi |
| Temperature Rating | 120 deg F |
| Wall Thickness | 10 in |
| Brand | Woodford® |
| Package Width | 4 in |
| Package Height | 3 in |
| UNSPSC | 40141760 |
| Package Length | 17 in |
| Country of Origin | US |
| Manufacturer | Woodford Manufacturing |
| UPC | 671090014118 |
| Manufacturer Part Number | 17CP-12-MH |
ASSE 1019 Type C Listed|CSA Certified|cUPC Listed
For year-round residential and irrigation purposes
