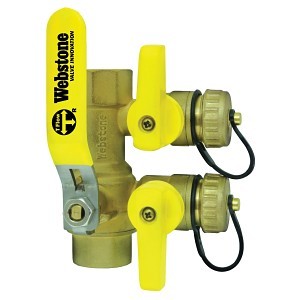

1-Piece Ball Valve, 1 in, FNPT, Full Port, Brass Ball, Brass
PartWEBH48614
MFG48614
Description
Webstone Purge & Fill™, 48614, Ball Valve, Series: 4861, 1 in Nominal, IPS End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 4-5/16 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Forged Brass Body, Bass/PTFE Trim, PTFE Softgoods, Import
Price/Availability Accessible On Login
- Simultaneously Drain, Flush and Refill any Hydronic, Solar, or Closed Loop System
- Saves 54 min
- Replaces 7 Components
- Eliminates 6 Leak Paths
- This valve is actuated by a blowout proof stem
- Adjustable Packing Gland
Suitable for residential, commercial or industrial use with water or oil, this valve was specifically designed for filling and draining glycol/antifreeze from any point in a hydronic system. This approved Webstone valve is actuated by a blowout proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1.
| Nominal Size | 1 in |
| End Style | FNPT |
| Port Type | Full |
| Construction | 1-Piece |
| Material | Brass |
| Ball Material | Brass |
| Actuator Type | Reversible Handle |
| Body Material | Brass |
| Color | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 4-5/16 in |
| Media | Oil/Water |
| Pressure Rating | 600 psi WOG |
| Series | Pro-Pal® 4861 |
| Softgoods Material | PTFE Seat, Stem Seal |
| Temperature Rating | 100 deg F |
| Top to Inlet Center | 2-9/16 in |
| Trim Material | Brass |
| Brand | Webstone |
| Package Width | 2.8 in |
| Package Height | 4 in |
| UNSPSC | 40141607 |
| Alternate Part Number 1 | H-48614 |
| Package Length | 8.1 in |
| Country of Origin | CN |
| Manufacturer | NIBCO Inc. |
| UPC | 018394486140 |
| Manufacturer Part Number | 48614 |
Lifetime
ANSI B1.20.1|ISO 9001
Residential, Commercial or Industrial Applications
