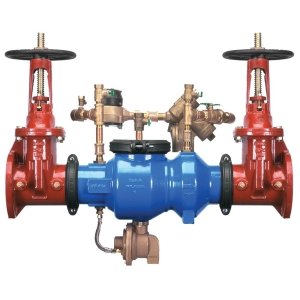

375ADA Reduced Pressure Backflow Preventer, 10 in, Flange, Ductile Iron
PartWKN375ADA10
MFG10-375ADA
Description
Zurn® Wilkins Detector Assembly, Series: 375ADA, 10 in Nominal, Flanged Outside Stem and Yoke Gate Valves, 175 psi, 125 lb Pressure Class, 140 deg F, Outside Stem and Yoke Gate Valve Ball Valve/Gate Valve, Reduced Pressure Backflow, Full Port, Media: Water, Ductile Iron Body, Epoxy Coated, 64-5/8 in L, Domestic
Price/Availability Accessible On Login
- Meters unauthorized water use in Fire lines
- The Model 375ADA shall provide protection where a potential health hazard exists, incorporates metered by-pass to detect leaks and unauthorized water use
The 10" 375ADA Reduced Pressure Detector Backflow Assembly is utilized in high health hazard and fire protection applications, protecting against both backsiphonage and backpressure of contaminated water into the potable water supply. The black fusion epoxy-coated ductile iron body and access covers offer corrosion resistantance. The incorporated metered bypass system saves you money by detecting leaks and any unauthorized water use in fire lines. The 375ADA comes standard with OS&Y flanged end connection gate valves.
| Nominal Size | 10 in |
| End Style | Flange |
| Body Material | Ductile Iron |
| Series | 375ADA |
| Backflow Type | Reduced Pressure |
| Ball Valve/Gate Valve Type | Outside Stem and Yoke Gate Valve |
| Dimensions | 64-5/8 in L |
| Domestic/Import | Domestic |
| Finish | Epoxy Coated |
| Height | 55 in |
| Length | 72.9 in |
| Media | Water |
| Port Type | Full |
| Pressure Class | 125 lb |
| Pressure Rating | 175 psi |
| Temperature Rating | 140 deg F |
| Width | 30.8 in |
| Brand | Zurn® Wilkins |
| Package Width | 30.8 in |
| Package Height | 55 in |
| UNSPSC | 40141600 |
| Package Length | 72.9 in |
| Country of Origin | US |
| Manufacturer | Zurn Water |
| UPC | 612052072241 |
| Manufacturer Part Number | 10-375ADA |
GPM Meter
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California|AWWA C606|AWWA C550|ASTM A536|ANSI/NSF 61|UL Listed|cUL Listed|FM Approved
Potable Water Lines in Fire Protection Systems
